Super-B BIB (Battery Interface Box) incl. relay 12V/350A
00510

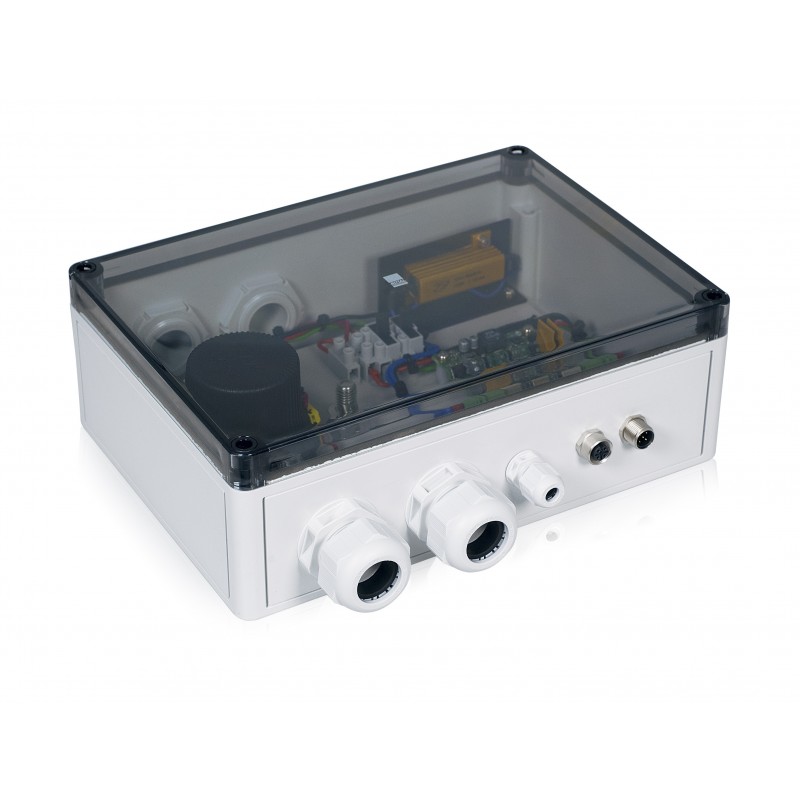

Battery Interface Box Super-B 12V - 350A
- connects several Super-B batteries together
- with integrated load relay and pre-charging
- button for ON / OFF / Reset
For Super-B batteries Nomada (from 1st battery) & Nomia (from 3 batteries) **
The following articles are required:
- Article no.: 30060 SB 1-1 Splitter
- Article no.: 30010CAN Cable 0.6m
- Item no.: 40010CAN terminating resistor (female)
- Article no.: 40020CAN terminating resistor (male)
The following formula is used to calculate how many items you need.
SB 1-1 Splitter = number of batteries + 1
CAN Cable 0.6m = number of batteries * 2
CAN terminating resistor female = 1
CAN terminating resistor male = 1
**Please contact us before ordering
00510
Data sheet
- Input voltage
- 7.5 V - 16 V
- Amperage
- 350 Amp continuous current
- Protection class IP
- IP54
- Feature
- Pre-charging resistor: 1 ohm
- Feature
- Consumption in off-state 100 mA
- Feature
- Consumption in standby mode 740 mA
- Dimension
- 180 x 254 x 111 mm
- Manufacturer data sheet & operating instructions
- https://www.super-b.com/de/produkte/zubehor/battery-interface-box-bib
- System voltage
- 12V
Specific References
- EAN13
- 8718531361843
Battery Interface Box Super-B 12V - 350A
- connects several Super-B batteries together
- with integrated load relay and pre-charging
- button for ON / OFF / Reset
