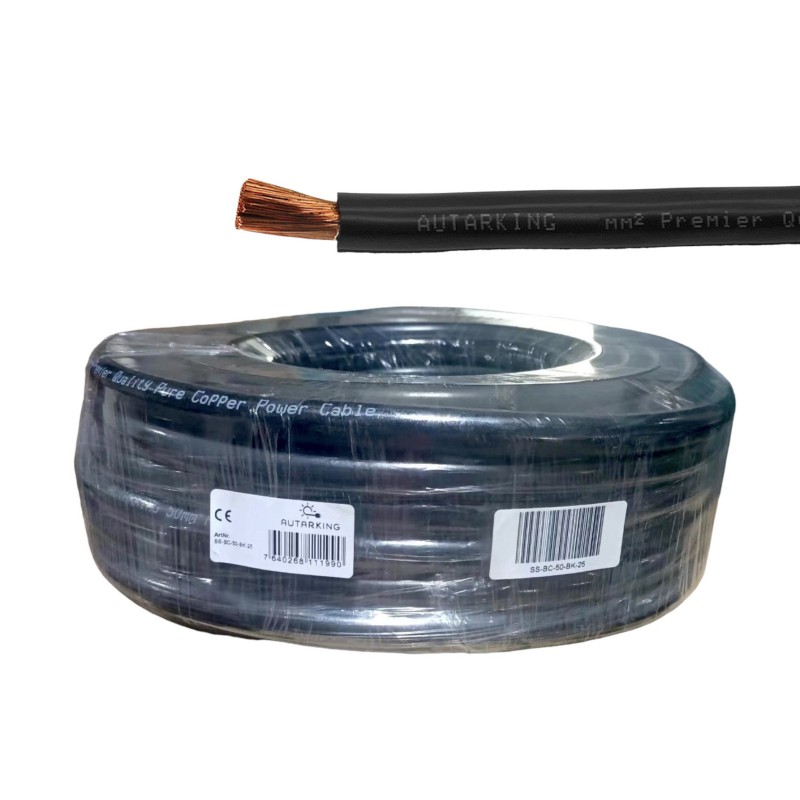

Battery / starter cable Highly flexible - 50mm2 black -25m
SS-BC-50-BK-25
DC welding cable 50mm2 - black - 25m ring
- Flexible, fine-wire
- for DC high-current installations
Accessories / Levy
Cable lugs
Battery cable for high-current applications - flexible - 50mm - red
Flexible, fine-core DC cable for high-current applications such as battery, inverter/inverter or charger cabling.
The smaller diameters are perfect for solar charge controllers and charge boosters etc.
Its flexibility is similar to the SGF cable, although the insulation material is different.
See our selection of compression cable lugs in various sizes under accessories.
Specifications:
| Cable cross-section | 50mm2 Battery cable |
| Standard | GB/T 5023.5-2008 |
Structure of the conductor:
| Copper wires (pieces) | 1007 pieces |
| Copper wire outer diameter | 0.25±0.002mm |
| Conductor type | OFC (pure oxygen copper) |
| Conductor resistance 20°C (MΩ/km) | ≤0.0037 |
Insulation:
| Insulation material | Rubber and plastic 105℃ |
| Rated voltage | 450/750V |
| Insulation outer diameter | 14.3±0.1mm |
| Average diameter | 2.5mm |
| minimum thickness | ≥2mm |
| Flame retardant standard | FT-1 |
| Anti-UV | Yes |
| Working temperature range | -40°C -- +105°C |
| Color | black color |
| Appearance | No impurities, no scratches, smooth, round |
| Environmental testing | ROHS(No Pb,Cd,Hg,Cr+6,PBBs,PBDEs) |
| Stress test of the finished product | soak in water for 1 hour at room temperature, apply 1.5kV voltage for 5 min, no breakdown |
| Spark test | 6kV |
| Burning test | - |
SS-BC-50-BK-25
Data sheet
- Cable length
- 25m
- Cable cross-section
- 50mm2 (ø 14.1mm)
- Manager
- Flexible bare copper
- Insulation
- Soft PVC
- Temperature range
- -40°C to 105°C
- Nominal voltage Uo/U
- 450/750VDC
- Color
- Black
Specific References
- EAN13
- 7640268111990
- MPN
- SS-BC-50-BK-25
