DC cable 25mm2 highly flexible for battery & vehicle installations
  • DC cable 25mm2 highly flexible for battery & vehicle installations

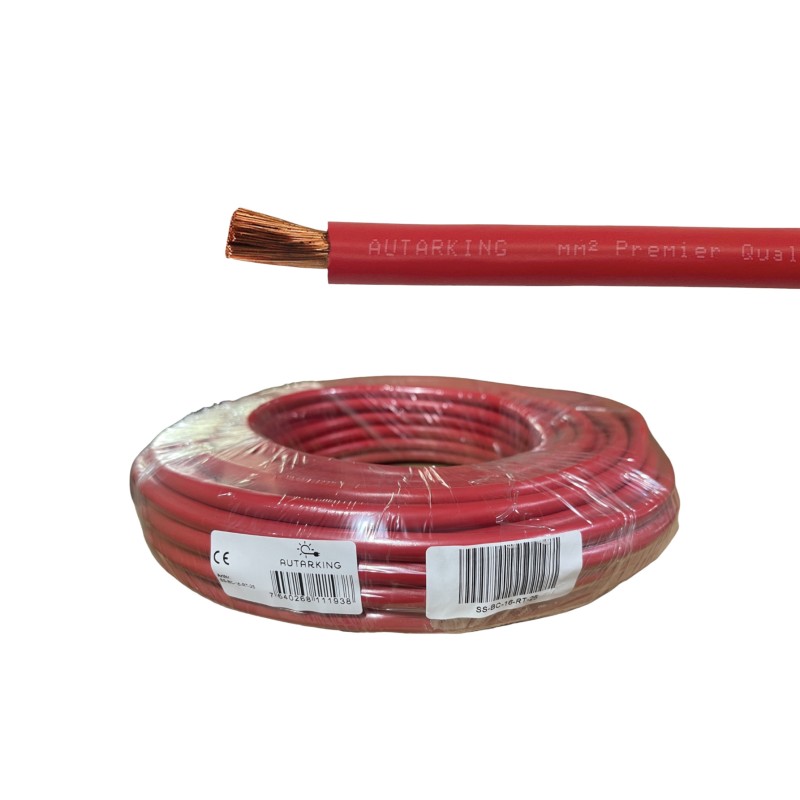

Battery / starter cable Highly flexible - 25mm2 red -25m

SS-BC-25-RT-25

DC welding cable 25mm2 - red - 25m ring

- Flexible, fine-wire
- for DC high-current installations

CHF185.10
excl. VAT.
CHF200.09 incl. VAT.
favorite_border Add to wishlist

Available immediately - 1-2 days*
Stock: 48 Pcs.
In the inflow: 0 Pcs.
Lieferzeit: 1-5 Werktage

Battery cable for high-current applications - flexible - 25mm - red

Flexible, fine-core DC cable for high-current applications such as battery, inverter/inverter or charger cabling.
The smaller diameters are perfect for solar charge controllers and charge boosters etc.

Its flexibility is similar to the SGF cable, although the insulation material is different.


See our selection of compression cable lugs in various sizes under accessories.


Specifications:

Cable cross-section 25mm2 Battery cable
Standard GB/T 5023.5-2008


Structure of the conductor:

Copper wires (pieces) 504 pieces
Copper wire outer diameter 0.25±0.002mm
Conductor type OFC (pure oxygen copper)
Conductor resistance 20°C (MΩ/km) ≤0.0044


Insulation:

Insulation material Rubber and plastic 105℃
Rated voltage 450/750V
Insulation outer diameter 10.3±0.1mm
Average diameter 1.9mm
minimum thickness ≥1.6mm
Flame retardant standard FT-1
Anti-UV Yes
Working temperature range -40°C -- +105°C
Color red

Appearance No impurities, no scratches, smooth, round
Environmental testing ROHS(No Pb,Cd,Hg,Cr+6,PBBs,PBDEs)
Stress test of the finished product soak in water for 1 hour at room temperature, apply 1.5kV voltage for 5 min, no breakdown
Spark test 6kV
Burning test -

SS-BC-25-RT-25

Data sheet

Cable length
25m
Cable cross-section
25.0mm2 (ø 10.3mm)
Manager
Flexible bare copper
Insulation
Soft PVC
Temperature range
-40°C to 105°C
Nominal voltage Uo/U
450/750VDC
Color
Red

Specific References

EAN13
7640268111969
MPN
SS-BC-25-RT-25
