Energy meter VM-3P75CT - Ve.Can - Ethernet
REL200300100
Current meter AC 3-phase via current transformer up to 75A
- for AC alternating current measurement
- 3 x current transformer 75A
- 3 phases, Ethernet & Ve.CAN interface
Accessories / Levy
System integration

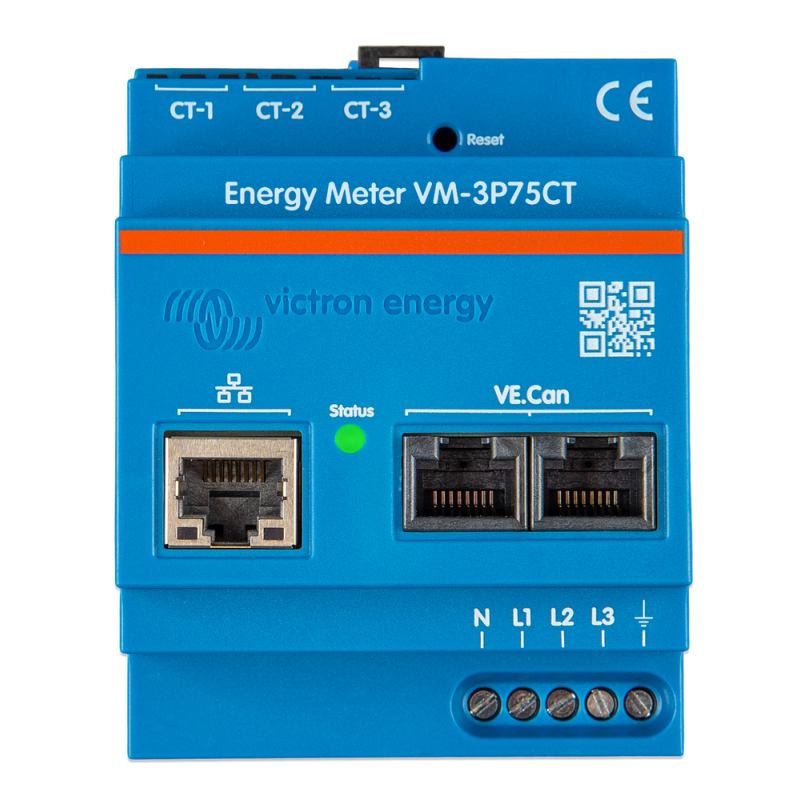

Energy meter VM-3P75CT
Three-phase energy meter with Ethernet and VE.Can-Kommunikationsanschlports
The Victron Victron VM-3P75CT Energy Meter is a standard device for measuring the power and energy of single-phase and
three-phase applications, e.g. at the distribution box or for measuring the power of a PV inverter, an alternator
or the power of an inverter and inverter/charger.
High baud rate
The Energy Meter calculates the RMS power values for each phase and transmits them at a high rate via VE.Can or Ethernet,
enabling more accurate measurements for power consumption, grid import and grid feed-in, for example in an ESS system,
.
With the VM-3P75CT, setup is a breeze
The energy meter has been designed for easy integration and works immediately as a grid meter in most systems (ready for use directly
). Configuration (via VictronConnect) is only required to change the function (grid meter, PV inverter,
AC genset or AC load meter) and manual IP configuration instead of the standard DHCP.
Remote monitoring from anywhere
Its data is displayed in the VictronConnect app, on a GX device such as the Cerbo GX or Ekrano GX and on our VRM portal
.
Effortless installation with plug-in current transformers
The VM-3P75CT uses current transformers in the form of clamps to accurately measure the current without having to change the wiring of an existing
installation.
Vector registration method
The VM-3P75CT uses the vector registration method (the vectors of the individual phases L1, L2 and L3 are totalled).
REL200300100
Data sheet
- Frequency
- 50 & 60 Hz
- Amperage
- Energiemeter, 3x Stromwandler, 2x Ve.CAN Abschlusswiederstände
- Connections
- 0.25-1.5 mm2 - Plug-in screw terminals
- Interface
- 90 x 71 x 59 mm
- Feature
- 3 Phasen
- Feature
- Transmission rate 100sm
- Dimension
- 90 x 71 x 59 mm
- Note
- 3 phases
- Scope of delivery
- Strommessung via klickbare Stromwandler
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/meters-and-sensors/energy-meter#downloads-datasheets
- System voltage
- 230VAC
Specific References
- EAN13
- 8719076059462
- MPN
- REL200300100
