SuperSense tank sensor Cerbo GX Integration

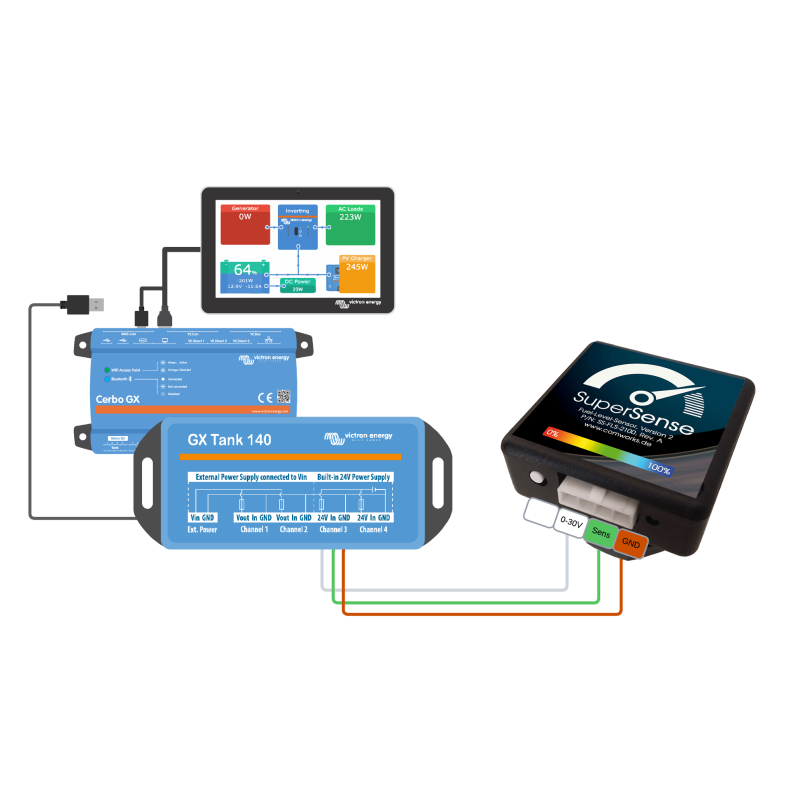

-> Use the GX Tank 140 interface to integrate SuperSense tank sensors

-> We do NOT provide support for installation and calibration!!!


-> Direct connection to the Cerbo tank sensor inputs is not possible as the SuperSense tank sensor outputs a voltage value.
The Cerbo tank inputs are only for resistance sensors.


-> Inputs 3 & 4 of the GX Tank 140 have an internal 24V power supply from UBS and can be used directly.
-> Inputs 1 & 2 of the GX Tank 140 require an external power supply which must be connected to the GX Tank 140.

The following video explains the configuration of the sensors on the Cerbo GX, more can be found on youtube.
