Featured products
Hybrid generator set - 3kVA, 2.5kWh - 1-phase
HG-Set-3kVA-2kWh1P
Hybrid generator set - 3kVA, 2.5kWh - 1-phase
- 1 inverter/charger combination with 3kVA / 5.5kVA peak each)
- Charging power 35 Amp (3kW)
- 1 Lithium Smart battery 2.5 kWh (51.2V 100Ah)
- BMS & fuse unit,
- Cerbo GX, display for operation, GSM module for remote monitoring
- System diagram, configuration via VRM, support for installation, operation, maintenance
Accessories / Levy
Extension
Hybrid generator set - 3kVA, 2.5kWh - 1-phase
Generators usually run with hardly any load
With this hybrid power set, you can massively reduce generator running times, fuel consumption, noise and pollutant emissions.
You also reduce service intervals, as the generator is only used to charge the battery or when peak loads occur.
With hybrid systems, a generator can be completely or partially dispensed with, depending on the power requirement.
If there is space available for solar power, this can take over the charging. Everything is controlled automatically and can be monitored remotely from anywhere.

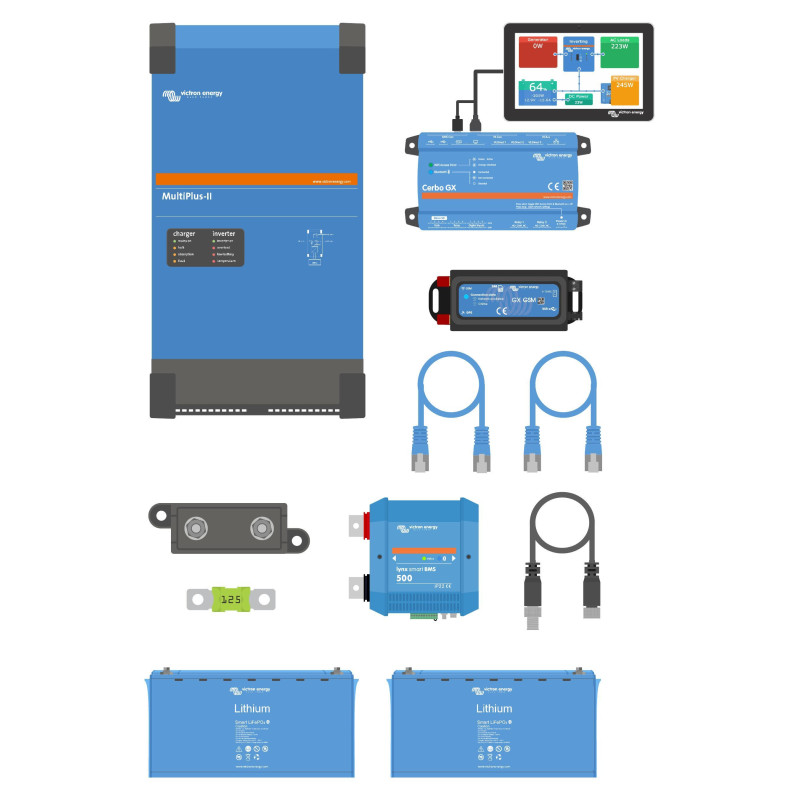

This set consists of the following components:
- 1x MultiPlus-II 48/3000-35-32
- 1x Smart Lithium 51.2V 100Ah battery
- Lynx BMS 500 NG with 2x Lynx distributors to protect all components
- Cerbo GX for control and monitoring
- GX Touch Display for on-site monitoring
- GX GSM module for monitoring via VRM Portal via browser or widget
- Data cable set for connecting the devices
- DC fuses
- System diagram and installation support
- Programming the components via VRM Portal
- Introduction to the system, Maintenance and servicing
- Monitoring arrangements can be defined as an option.
For installation reasons, this set does NOT include DC & AC cabling or AC fuse components
With the sophisticated remote monitoring portal VRM, the operation of the system can not only be monitored, but also information and alarm messages can be sent via email and push notification. You can monitor and control your entire fleet in the simplest possible way.
If you have any further questions or system designs, please do not hesitate to contact us.
HG-Set-3kVA-2kWh1P
Data sheet
- Battery voltage
- 48V
- Charging current
- 35A
- Inverter power (25°) W
- 2400W
- Inverter power peak
- 5500W
- Transfer switch
- 32A
- Interface
- Ethernet
- Interface
- Wifi
- Feature
- Anschluss für Notaus Schalter
- Feature
- 4x Temperatur Eingänge oder via Bluetooth
- Feature
- 4x Temperatur Eingänge oder via Bluetooth
- Feature
- Connection for emergency stop switch
- Feature
- 3-phase for star Y loads
- Capacity / Wh
- 2.5kWh
- Charging temperature (°C)
- +5℃ to +50℃
- Discharge temperature (°C)
- -20°C to 50°C
- Note
- 4x Temperatur Eingänge oder via Bluetooth
- Scope of delivery
- 4x Temperatur Eingänge oder via Bluetooth
- Manufacturer data sheet & operating instructions
- 4x Temperatur Eingänge oder via Bluetooth
- Manufacturer data sheet & operating instructions
- Manufacturer data sheet & operating instructions
- Manufacturer data sheet & operating instructions
- Anschluss für Notaus Schalter
- Manufacturer data sheet & operating instructions
- Anschluss für Notaus Schalter
- Manufacturer data sheet & operating instructions
- 4x Temperatur Eingänge oder via Bluetooth
Specific References
- MPN
- HG-Set-3kVA-2kWh1P
