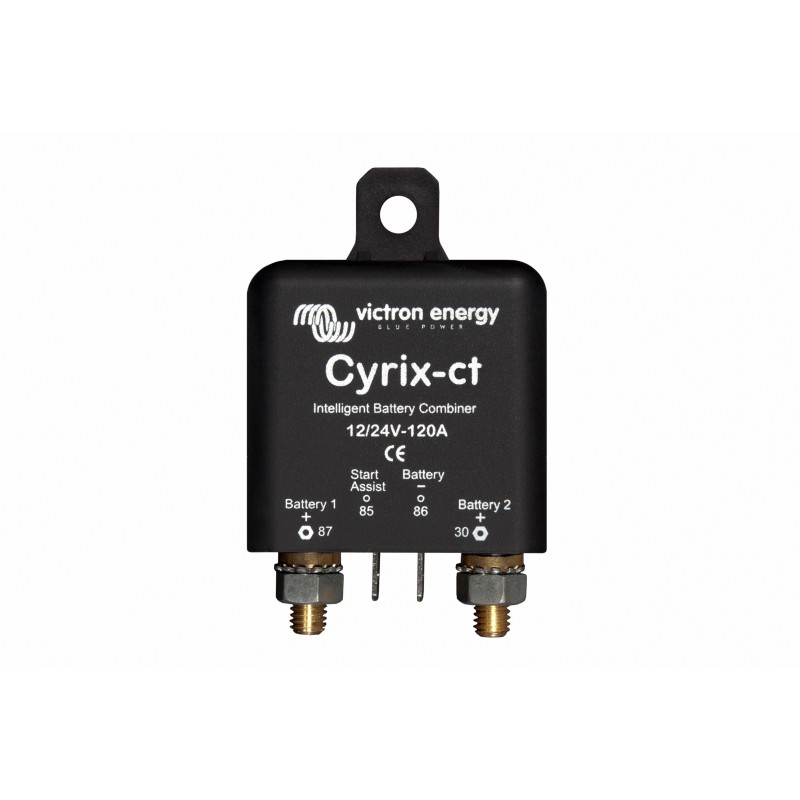

Cyrix-ct 12/24V-120A charging relay

Reference: CYR010120011

Cyrix-ct cut-off relay 120A

- Battery voltage 12-24V, continuous current: 120A, max. 180A
- not suitable for smart alternators
- start bridging (current flow 30 sec.)

CHF49.00

excl. VAT.

CHF52.97 incl. VAT.

Add to wishlist

Available immediately - 1-2 days*

Stock: 8 Pcs.

In the inflow: 0 Pcs.

Lieferzeit: 1-5 Werktage

Cyrix Battery Coupler

The Cyrix battery coupler is a high performance microprocessor controlled relay that automatically connects batteries in parallel when one of them has reached a predetermined voltage level (indicating that the battery is charging) and disconnects the batteries when the voltage drops below the float voltage level (indicating that one or both batteries are being discharged).

Cyrix battery couplers are ideal for replacing isolating diodes. Their main feature is that there is virtually no voltage loss, so there is no need to increase the output voltage of the battery chargers.

Models: 120A / 230A / 400A

Reference CYR010120011

Data sheet

Amperage: 120A / 180A (5s)
Connections: M6
Protection class IP: IP54
Dimension: 46 x 46 x 80mm
Note: Start assistant 30sec.
Note: Requires 2 battery voltages to switch!!!
Manufacturer data sheet & operating instructions: https://www.victronenergy.de/battery-isolators-and-combiners/cyrix-battery-combiners#datasheets
System voltage: 12 - 24V
