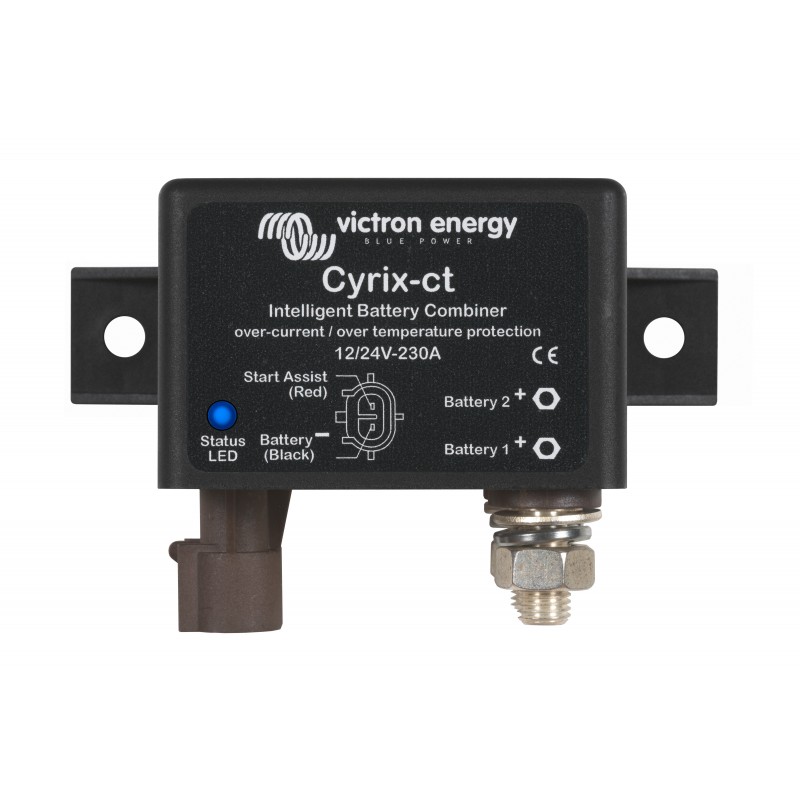

Cyrix-ct 12/24V-230A charging relay
CYR010230010
Cyrix-ct cut-off relay 230A
- Battery voltage 12-24V, continuous current: 230A, max. 500A
- not suitable for smart alternators
- start bridging (current flow 30 sec.)
Cyrix Battery Coupler
The Cyrix battery coupler is a high performance microprocessor controlled relay that automatically connects batteries in parallel when one of them has reached a predetermined voltage level (indicating that the battery is being charged) and disconnects the batteries when the voltage drops below the float voltage level (indicating that one or both batteries are being discharged).
Cyrix battery couplers are ideal for replacing isolating diodes. Their main feature is that there is virtually no voltage loss, so there is no need to increase the output voltage of the battery chargers.
Models: 120A / 230A / 400A
CYR010230010
Data sheet
- System voltage
- 12 - 24V
- Amperage
- 230A / 500 A (5s)
- Connections
- M8
- Protection class IP
- IP54
- Cable length
- Dimension
- 65 x 100 x 50mm
- Weight
- 0.27kg
- Hint
