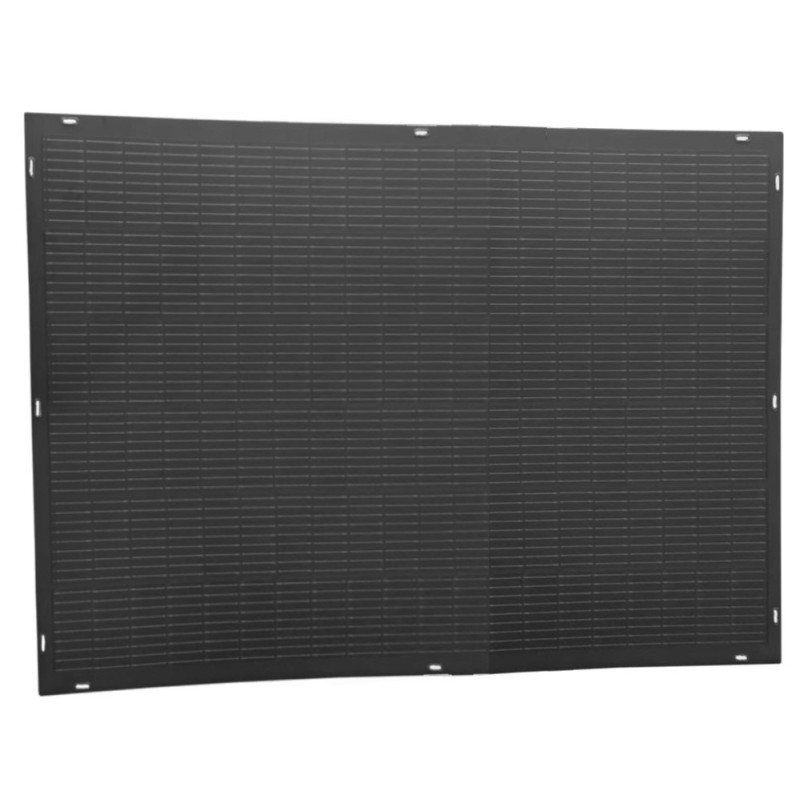

Solar module flex - 405Wp for balcony mounting

TSS-BKSP405W

Semi-flexible solar module for balcony solar 405Wp

- Battery voltage 12-24V, power 405Wp
- Efficiency: ~23%, 6.4kg, IP67, 0.9m 2x4mm2 cable
- 12 eyelets, connection box at the back
- 1940 x 1035 x 3mm (16mm)

CHF230.00
Tax excluded
CHF248.63 inkl. MwSt.
favorite_border Add to my wishlist

Available immediately - 1-2 days*
Lagerbestand: 69 Stk.
Im Zulauf: 0 Stk.

Solar module flex - 405Wp for balcony mounting

Balcony solar systems have gained in importance and interest. After all, they offer a simple and cost-effective way of reducing your own electricity consumption.

This semi-flexible solar module offers a lightweight alternative to framed solar modules. They are lighter and therefore easier to install and can be repositioned / relocated more easily if a fixed installation is not possible. Eyelets on the sides of the panel allow easy tightening, hanging or tying.

The panel is supplied without UV-resistant cable ties. Please order these as accessories in a set of 12.



Robust construction

The ETFE coating is extremely durable and weather-resistant.

Connection

There are two diodes in the connection box, which prevent the current from flowing back and protect the cells.
The connection box is aesthetically located on the back, so it is not visible from the front and the cables can also be laid at the back.

TSS-BKSP405W

Data sheet

System voltage
12 - 24V
Panel power
405Wp
Connections
MC4 Kompatibel
Solar panel length (mm)
Solar panel width (mm)
1035mm
Solar panel height (mm)
3mm (20mm)
Solar panel Vmpp
Solar panel Impp
Protection class IP
IP 67
Cable length
0.3m
Cable cross-section
4mm2
Feature
12 Lochösen zur Befestigung
Feature
Farbe: Dunkelgrau
Weight
6.4kg
