- New
Smart Shunt 1000A/50mV
SHU050210050
Battery monitoring without display 1000A
- Battery voltage 6.5-70VDC, 1000Amp
- Battery capacity 1- 9999Ah, starter battery monitoring
- VE.Direct Interface for system integration, Bluetooth
Zubehör / Gebühr
Kabel

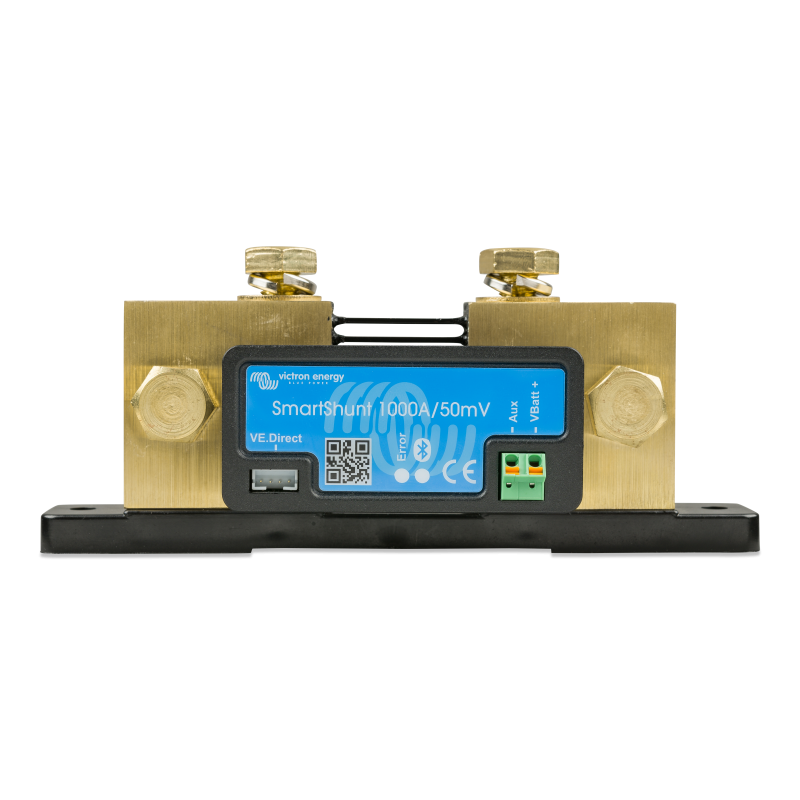

SmartShunt 1000A IP21
The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as a display. The SmartShunt connects to the VictronConnect app on your phone (or tablet) via Bluetooth and you can conveniently read out all monitored battery parameters, such as state of charge, remaining runtime, history information and much more.
Alternatively, the SmartShunt and can be read by a GX device. The connection to the SmartShunt is made via a VE.Direct-Kabel.
The SmartShunt is a good alternative for BMV battery monitoring, especially for systems where battery monitoring is required but a separate display is not necessary. The SmartShunt is equipped with Bluetooth, a VE.Direct-Port. also a second battery, centre point monitoring or a temperature sensor.
VictronConnect
With VictronConnect you can query live status information and configure all Victron products that either have a built-in Bluetooth function or are connected to a VE.Direct Bluetooth Smart Dongle.
SHU050210050
Data sheet
- Battery voltage
- 6.5-70VDC
- Capacity / Ah
- 1 - 9999Ah
- Amperage
- 1000A
- Connections
- M10
- Protection class IP
- IP 21
- Feature
- Misst Spannung einer zweiten Batterie, Temperatur oder Mittelpunkt
- Scope of delivery
- 2x Kabel mit Sicherung für Spannungsmessung
- Dimension
- 68 x 120 x 54mm
- Hint
- Bluetooth Reichweite 10-15m
