Battery monitor BMV-710H Smart, 70-350VDC
BAM030710100
Battery monitor for monitoring the service battery
- Battery voltage 60-385VDC, shunt 500A
- no start battery, relay, SOC, V, A, Ah, TTG, history
- Ve.Direct, (bluetooth optional)
Accessories / Levy
Controll panels
Extension
Cable
Installation
Programmierung
|
|

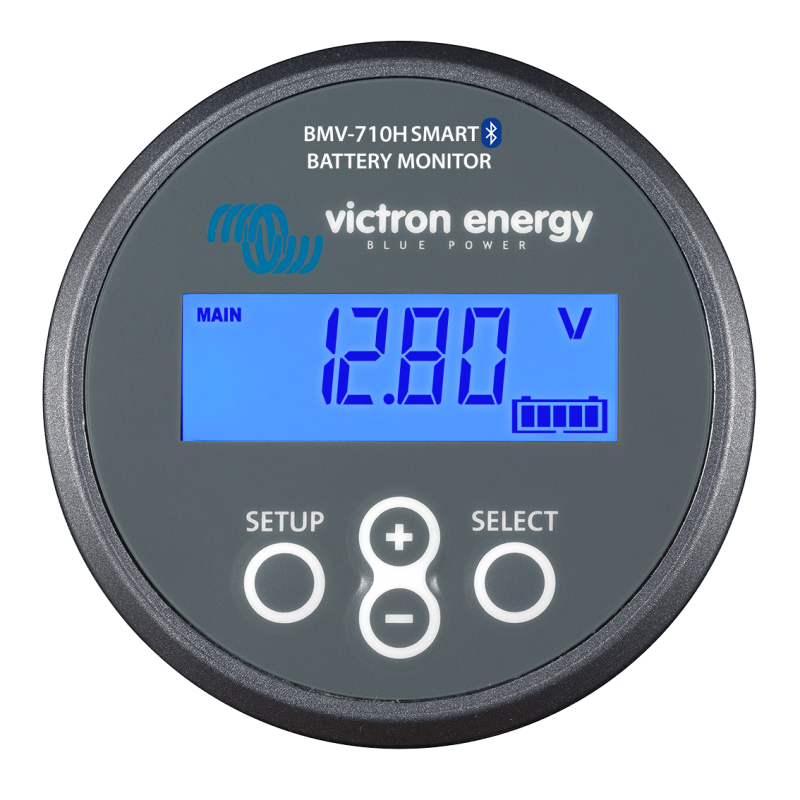

BMV-710H Smart in plastic housing
The BMV-700 is a high-precision battery monitor. The main function of a battery monitor is to calculate the ampere-hours consumed and the state of charge of a battery. The ampere-hours consumed are calculated by integrating the current flowing into or out of the battery.
The battery monitor requires the Peukert value of the battery for this. A generator or other equipment can be controlled via a relay. A Ve.Direkt interface enables system integration or programming via computer or Bluetooth (dongle).
The following information is available:
- State of charge SOC
- Voltage Volt
- Current Ampere
- Ampere hours used Ah
- Remaining time TTG
- Power W
- Past history values
Models: 6.5 - 95V
BAM030710100
Data sheet
- Battery voltage
- 60-385VDC
- Amperage
- 500A (50mV)
- Connections
- M10 & open ends
- Protection class IP
- IP55 (nicht für Aussenanwendungen)
- Interface
- VE.Direct & Bluetooth
- Cable length
- 10m
- Plug (In / Out)
- RJ12
- Feature
- no start bat. Volt measurement
- Dimension
- 69 x69x 31mm - (63mm Durchmesser)
- Note
- 1 x relay
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/panel-systems-remote-monitoring/bmv-700#datasheet
Specific References
- EAN13
- 8719076049500
