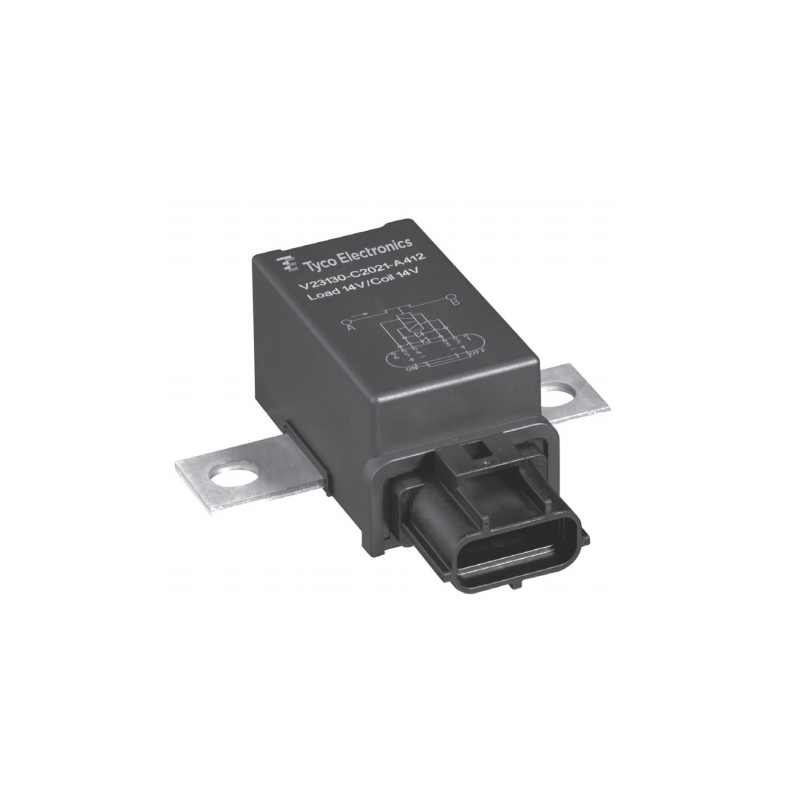

Super-B Relay BDS-A 12/42VDC / 190A/260A
31080
BMS relay for Super-B Nomia
- System voltage: 12V, current 250Amp (peak 1500Amp)
- bistable, switching voltage 12V
- continuous current limitation 190 A at 85°C, incl. cable & plug
NOMIA bistable BMS relay
This relay serves as a safety relay for the Nomia Super-B battery.
It is connected directly to the Nomia battery and controlled via the internal BMS.
It can be reactivated via a button in the fuse compartment.
It is a bistable relay and therefore consumes hardly any power.
31080
Data sheet
- Amperage
- 250A (peak 1500A)
- Connections
- M8
- Protection class IP
- IP54
- Cable length
- 1m
- Plug (In / Out)
- 4-pin Phoenix Contact
- Note
- Connect cable lug directly to relay
- Manufacturer data sheet & operating instructions
- https://s3.eu-central-1.amazonaws.com/superb-com/sulu/uploads/media/03/manual_nomia_relay.pdf
- System voltage
- 12V
Specific References
- EAN13
- 8718531361010
- MPN
- 31080
BMS relay for Super-B Nomia
- System voltage: 12V, current 250Amp (peak 1500Amp)
- bistable, switching voltage 12V
- continuous current limitation 190 A at 85°C, incl. cable & plug
