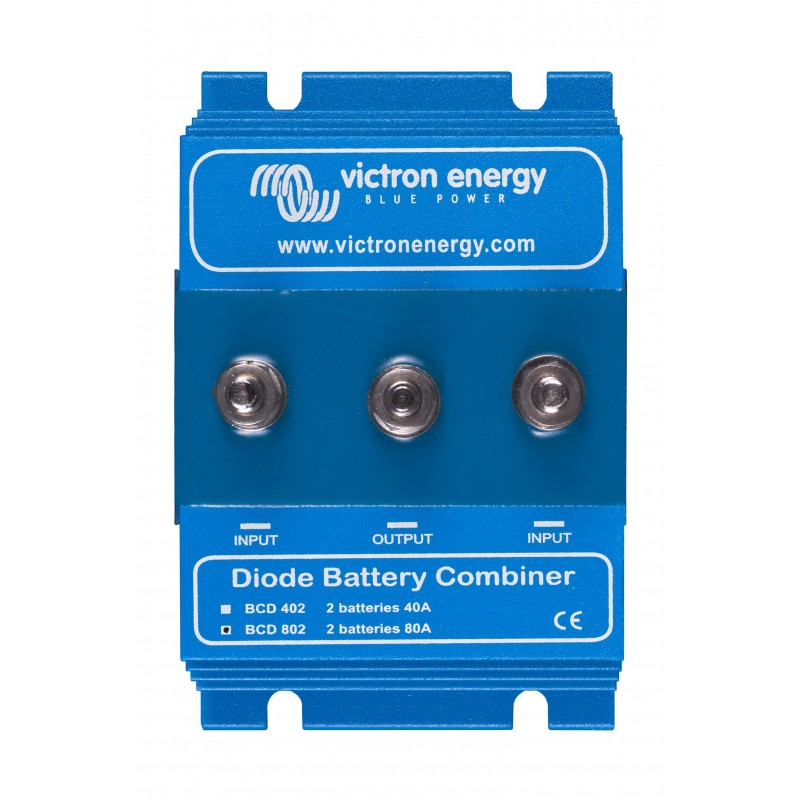

BCD 402 Battery coupler, 2 batteries 40A
BCD000402000
Battery coupler 40A, for 2 batteries
- System voltage 12/ 24V, max. continuous current. 40A
- 2 batteries, voltage drop: 0.3 - 0.45V
Argo diode-battery coupler
Diode-battery couplers are used to provide continuous DC power to supply critical equipment, such as an electronic motor control system. With the help of a diode-battery coupler, two or more DC sources can be connected in parallel to supply the load required for operation. If one source fails, the supply to the necessary load is not interrupted.
BCD000402000
Data sheet
- Amperage
- 40A
- Connections
- M6
- Number of inputs
- 2
- Number of outputs
- 1
- Dimension
- 60 x 120 x 75mm
- Weight
- 0.6kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/battery-isolators-and-combiners/argo-diode-battery-combiners#datasheet
- System voltage
- 12 - 24V
Specific References
- EAN13
- 8719076020967
- MPN
- BCD000402000
