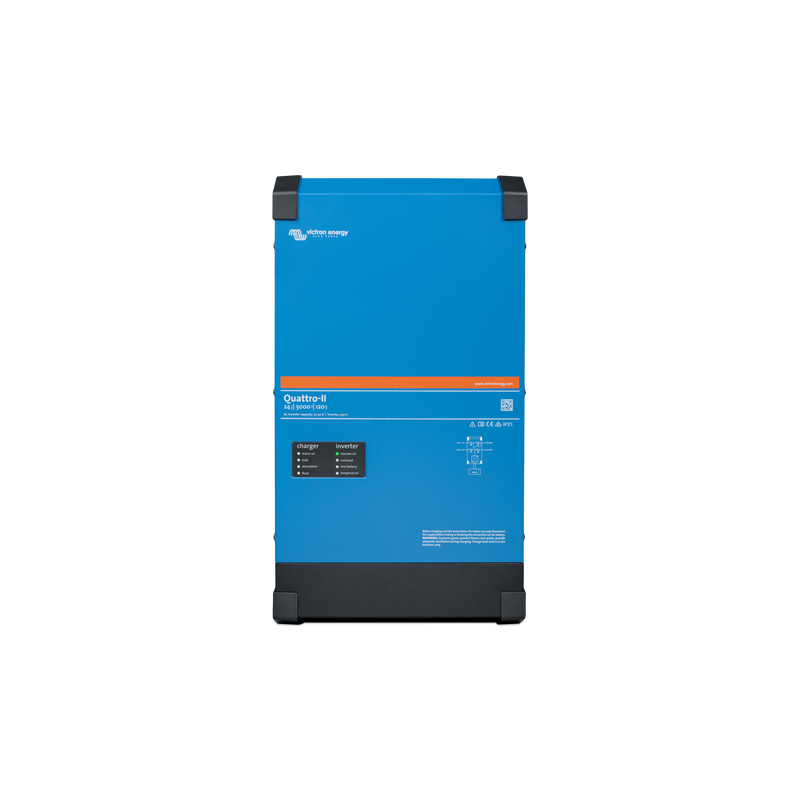

Quattro-II 24/5000/120-50-50
Quattro Inverter & Charger 5000VA
- Battery sp. 24V, inverter 4000W (9000W), charger 120Amp,
- autom. 230V switching, power assist, charge start bat. 4A
- VE.Bus interface for system integration, prog. relay,
Quattro-II 48/5000/70-50/50
Similar to the MultiPlus, the Quattro-II is also a combination of inverter and charger. It can also accept two AC inputs and automatically connect to the active source. This elegant solution offers numerous functions such as that of a true sine wave inverter, an adaptive charging function, Hybrid PowerAssist technology and several system integration options: for example, three-phase or split-phase operation as well as parallel operation.
Two AC inputs and two AC outputs
The Quattro-II can be connected to two independent AC sources, for example to a shore-side power connection and a generator or to two generators. The Quattro-II automatically connects to the active source. The main output ensures uninterrupted functionality. If a power failure occurs or the connection to the shore-side power or generator power is interrupted, the Quattro-II takes over the supply to the connected consumers. The switchover happens so quickly (in less than 20 milliseconds) that uninterrupted operation of computers and other electronic devices is guaranteed. The second output only supplies power when alternating current is present at one of the Quattro-II inputs. This output can be used to connect loads that must not drain the battery, such as an air conditioning system or a water heater.
Unique PowerAssist function
The Quattro-II prevents an AC source with a limited load capacity, e.g. a generator or a shore power connection, from being overloaded. Firstly, the charging process of the battery is automatically reduced if an overload would otherwise occur. Next, the power from the battery is used to boost the output of a generator or shore power supply.
In other words, practically unlimited power through parallel connection
Up to 6 Quattro-II can be connected in parallel for high power requirements. three-phase or split-phase operation is also possible.
Remote monitoring and control
In conjunction with a GX device (z.B. Cerbo GX), you can monitor and control your Quattro and the system or systems locally (LAN) or remotely via the Internet from anywhere in the world using the free VRM app and Free VRM Portal website. Access can be via a phone, tablet, laptop or PC with a wide range of operating systems. There is no end to the control options, from setting up your Quattro to automatically starting a backup generator and more..."
Data sheet
- Input voltage
- 187-265 VAC
- Output voltage
- 230 VAC
- Battery voltage
- 24V
- Charging current
- 120A
- Loading algorithm
- mehrstufig, adaptiv
- Connections
- M8
- Inverter power (25°) W
- 4000W
- Inverter power peak
- 9000W
- Transfer switch
- 2x 50A
- Protection class IP
- IP22
- Interface
- VE.Bus
- Parallel / 3 phase
- JA
- Dimension
- Weight
- 31kg
- PowerAssist - min. shore power
- Recommended battery capacity
- 400 - 1400Ah
- Recommended protection
- 400A
- Recommended cable cross-section
- 0-5m je 2x50mm2 - 5-10m je 2x95mm2
