- New

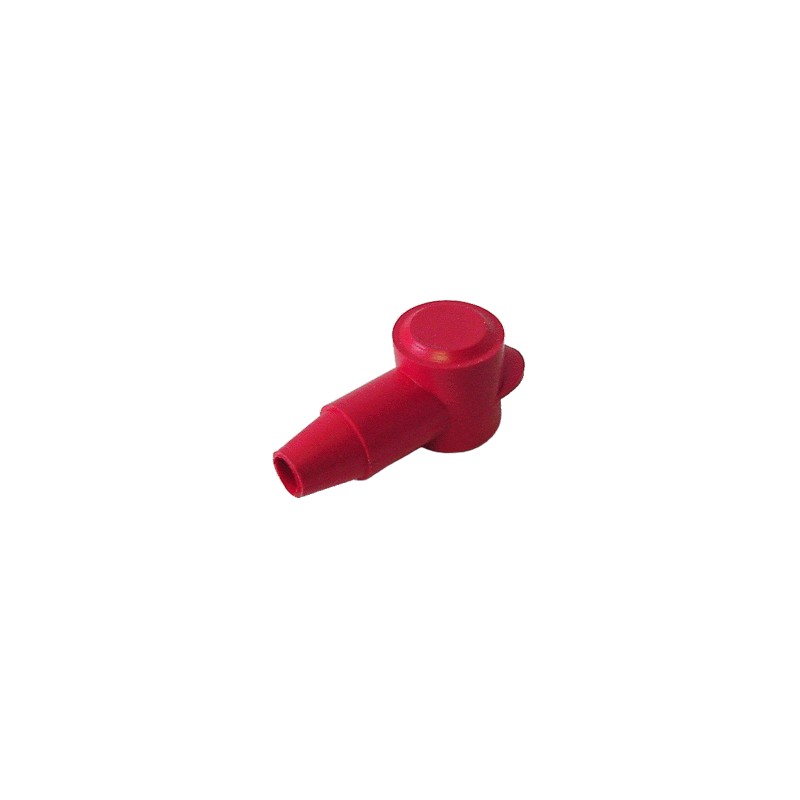

VTE - Insulating cap 218 - long / thick - red
VTE-218E2V02
Insulating cap for ring cable lug
- Terminal diameter 18.5mm
- Cable cross-section 8 - 32mm2
- Terminal height 22.1mm
Series 200 terminal insulators
The 200 series has a long and popular history. This cost-effective and efficient series is suitable for many applications and helps ensure your products meet industry safety standards. The 200 Series is available in connection widths from 12 mm to 34 mm and offers solutions for most applications.
VTE-218E2V02
Data sheet
- Insulating cap Inner diameter
- 12.7mm / 0.5 Inch
- Terminal connection height
- 17.78mm / 0.7 Inch
- Cable entry diameter
- 2 - 8 - 32 mm2 / 8 - 2 AWG
- Cable lug length
- 31.75mm / 1.25 Inch
- Nominal material thickness
- 1.52mm / 0.06 Inch
- Colour
- Red
- Terminal / cable lug Outer diameter
- 18.54mm
- Insulators series
- 218
