Orion-Tr Smart 24/24-17A (400W) - insulated
ORI242440120
DC/DC charging booster 24/24V 17Amp
- Input voltage 24V, output voltage 24V, charging current 17Amp
- Customisable charging characteristic, remote control, motor run detection
- Bluetooth for programming and monitoring
Accessories / Levy
Installation
Programmierung
|
|

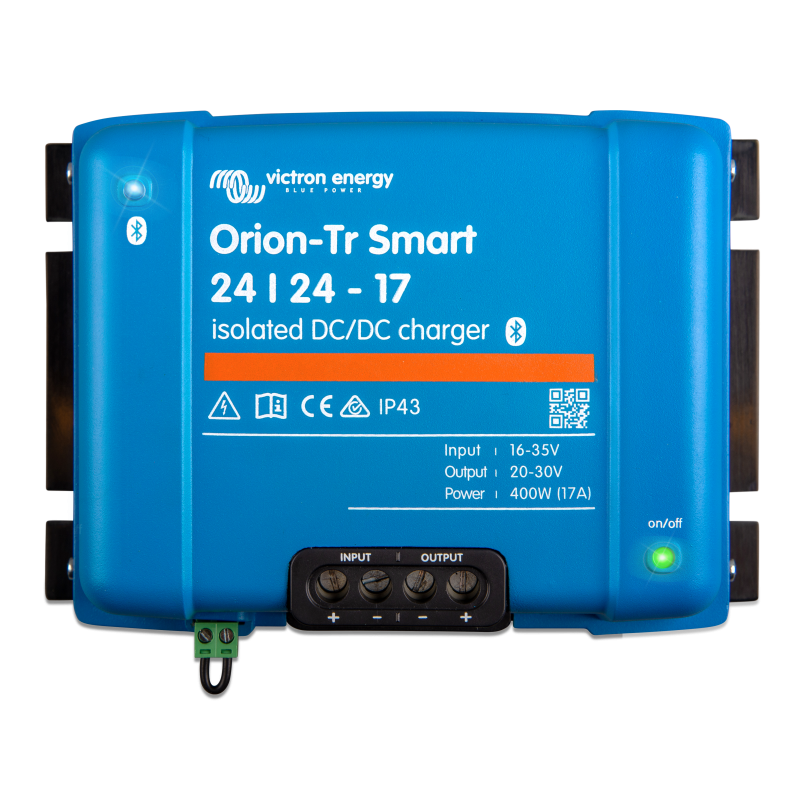

Orion-Tr Smart DC-DC charge booster 24/24V - 17Amp isolated
The Orion-Tr Smart DC-DC charger is a professional, DC to DC adaptive 3-stage charger with integrated Bluetooth, known on the market as a charge booster and/or battery-to-battery (B2B) charger.
For use in dual battery systems in vehicles or on boats where the (intelligent) alternator and the starter battery are used to charge the service battery. The device can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch. It has an engine run detection mechanism.
The Orion-Tr Smart charger can be used in 12V or 24V systems and is suitable for both lead-acid and lithium batteries. Models up to 400W are available and an unlimited number of units can be connected in parallel to increase the output power.
Suitable for high temperatures up to 55°C with full rated power up to 40°C.
VictronConnect
VictronConnect allows you to request live status information and configure all Victron products that either have a built-in Bluetooth function or are connected to a VE.Direct Bluetooth Smart Dongle.
ORI242440120
Data sheet
- Input voltage
- 16-35V
- Output voltage
- 18-30V
- Charging current
- 17A
- Loading algorithm
- 3-stage adaptive & power supply
- Connections
- Open ends 16mm2
- Number of outputs
- 1
- Galvanic insulation
- YES
- Protection class IP
- IP 43
- Interface
- Bluetooth
- Dimension
- 130 x 186 x 70mm
- Weight
- 1.6kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-tr-smart#datasheets
Specific References
- EAN13
- 8719076047728
