Buck-Boost 100A DC/DC converter
ORI303100000
Buck charge booster 100A
- Input voltage 12/24V, output voltage 12/24V,
- Charging current up to 100A/50A, charging voltage adjustable
- Remote control, motor run detection
- USB for programming / connection of temperature sensor
Accessories / Levy
Extension
Programmierung
|
|

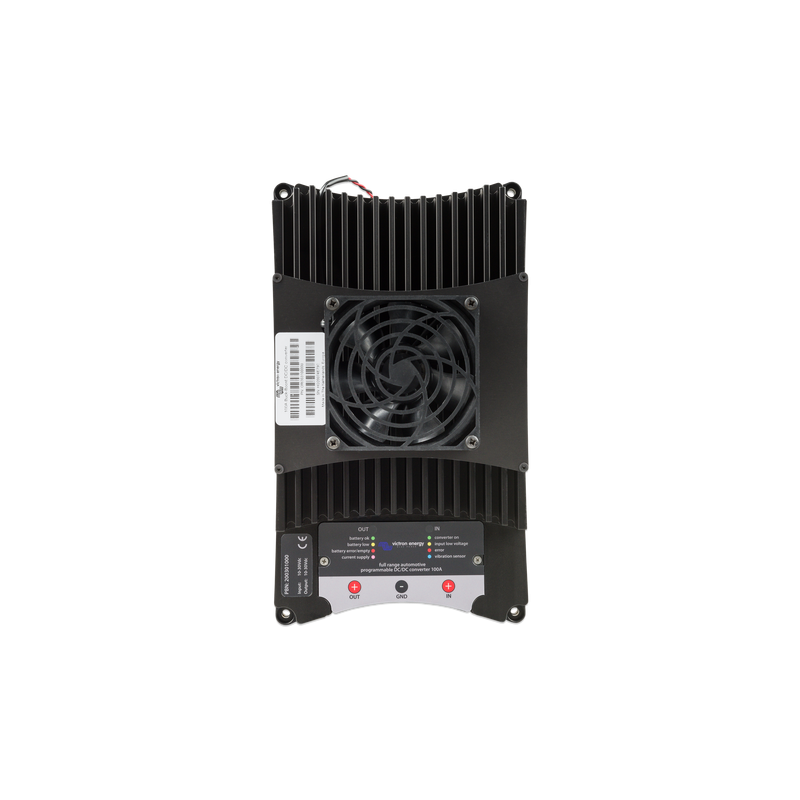

Buck-Boost DC-DC converter 25A / 50A / 100A
DC-DC converter for charging a 12V/24V service battery in vehicles with an intelligent alternator.
The Buck-Boost DC-DC converter is a DC-DC converter for charging a 12V/24V service battery in vehicles with an intelligent alternator. As these alternators (driven by the on-board electronics of Euro 5 and 6 engines) do not always output the correct charging current, a DC-DC converter is crucial for charging the service battery correctly.
Furthermore, it is almost essential to use a booster to charge a lithium battery. As lithium batteries have a very low internal resistance, they draw as much current as the alternator can supply. This can lead to an overload of the alternator and/or the wiring. A booster limits this current. Only with the Buck Boost can the charging current be freely adjusted.
ORI303100000
Data sheet
- Input voltage
- 10-30V
- Output voltage
- 10-30V
- Charging current
- 12V 100A - 24V 50A
- Loading algorithm
- 3-stage
- Connections
- M8
- Galvanic insulation
- NO
- Interface
- USB
- Feature
- ext. Temperature sensor (optional)
- Dimension
- 288 x 162 x 95mm
- Weight
- 4.1kg
- Note
- Status LED input & output
- Note
- Temperature sensor can control charging current
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/buck-boost-dc-dc-converter-25a-50a#datasheet
Specific References
- EAN13
- 8719076046837
