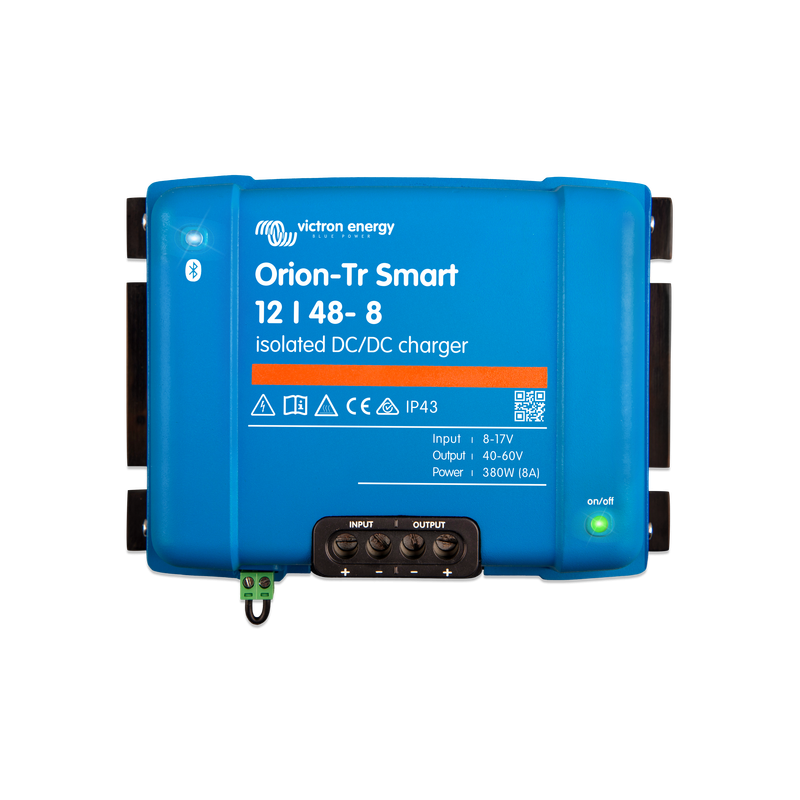

Orion-Tr Smart 12/48-8A (360W) - Insulated
ORI124838120
DC/DC charging booster 12/48V 8Amp
- Input voltage 12V, output voltage 48V, charging current 8Amp
- Adjustable charging characteristic, remote control, motor run detection
- Bluetooth for programming and monitoring
Orion-Tr Smart DC-DC charge booster 12/48V - 8Amp isolated
The Orion-Tr Smart DC-DC charger is a professional, DC to DC adaptive 3-stage charger with integrated Bluetooth, known on the market as a charge booster and/or battery-to-battery (B2B) charger.
For use in dual battery systems in vehicles or on boats where the (intelligent) alternator and the starter battery are used to charge the service battery. The device can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch. It has an engine run detection mechanism.
The Orion-Tr Smart charger can be used in 12V, 24V or 48V systems and is suitable for both lead-acid and lithium batteries. Models up to 400 W are available and an unlimited number of units can be connected in parallel to increase the output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Models:
12 / 24 / 48 Volt
VictronConnect
With VictronConnect you can query live status information and configure all Victron products that either have a built-in Bluetooth function or are connected to a VE.Direct Bluetooth Smart Dongle.
ORI124838120
Data sheet
- Input voltage
- 8-17V
- Output voltage
- 40-60V
- Charging current
- 8A
- Loading algorithm
- 3-stage adaptive & power supply
- Connections
- Open ends 16mm2
- Galvanic insulation
- YES
- Protection class IP
- IP 43
- Interface
- Bluetooth
- Dimension
- 130 x 186 x 80mm
- Weight
- 1.8kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-tr-smart#datasheets
Specific References
- EAN13
- 8719076065654
- MPN
- ORI124838120
