Featured products

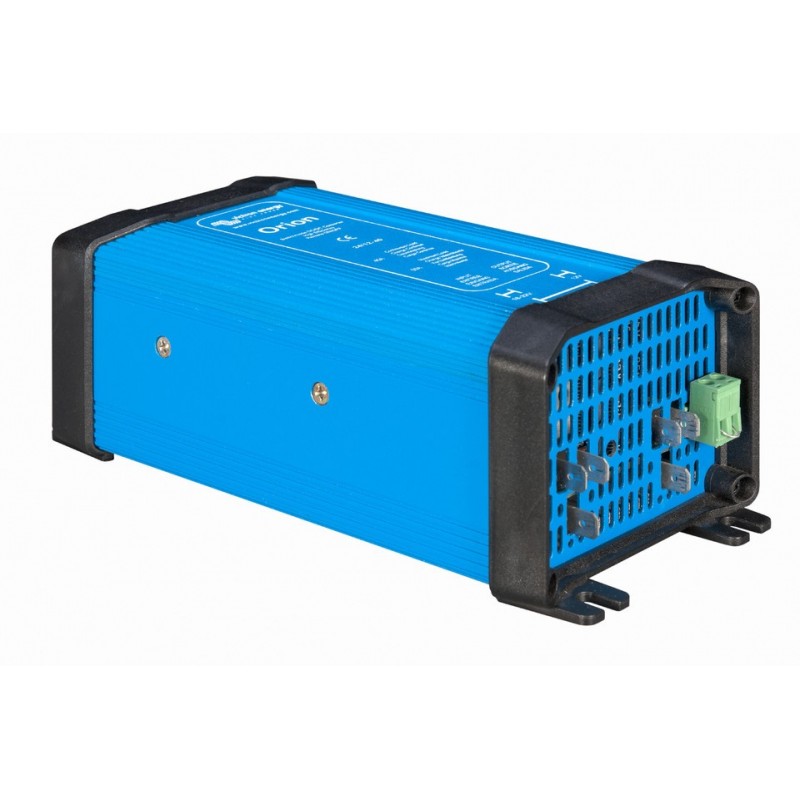

Orion 24/12-40A - not insulated
ORI241240021
DC/DC converter 24/12V 40Amp
- Input voltage 24V, output voltage fixed, 13.2V
- Charging current 40Amp,
- Efficiency: 95%
Orion-Tr DC/DC converter, non-isolated, high performance:
Remote on/off connection
The remote on/off connection eliminates the need for a high-current switch in the input wiring
. The remote on/off connection can be controlled using a power-saving switch or the motor's
Run/Stop switch (see manual).
All models with an adjustable output can also be used as a battery charger.
For example, for charging a 12 V starter or auxiliary battery in an otherwise 24 V system.
All models with adjustable output can be connected in parallel to increase the output current.
Up to five devices can be connected in parallel.
Simple installation:
The scope of delivery includes 4 insulated blade terminals with 6.3 mm crimp socket.
ORI241240021
Data sheet
- Input voltage
- 18-35V
- Output voltage
- 13.2V
- Output voltage Characteristic
- Fixed voltage
- Connections
- Flat plug 6.3 mm
- Galvanic insulation
- NO
- Protection class IP
- IP 20
- Dimension
- 65 x 88 x 185mm
- Weight
- 0.8kg
- Note
- Remote control
- Note
- Blower ventilation
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-dc-dc-converters-12v-24v-48v-110v#datasheet
- Manufacturer data sheet & operating instructions
Specific References
- EAN13
- 8719076038726
- MPN
- ORI241240021
