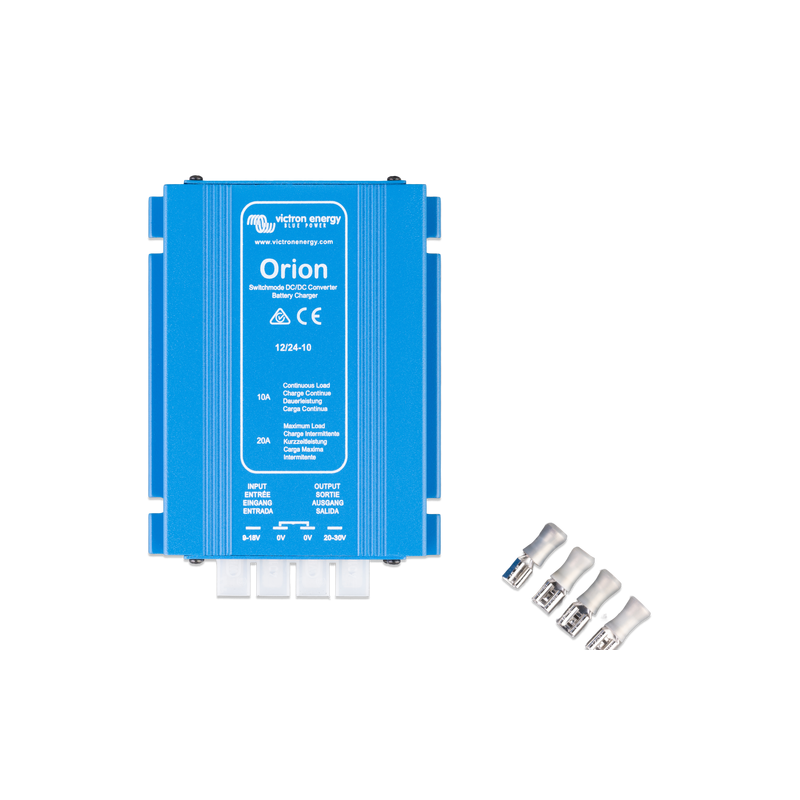

Orion 12/24-10A - not insulated
ORI122410020
DC/DC voltage converter 12/24V 10Amp
- Input voltage 9-18V, output voltage adjustable 20-30V
- Charging current 10Amp
- Efficiency: 95%, no fan ventilation
Orion-Tr DC/DC converter, non-isolated
Plug for remote on/off switching
The remote on/off switch eliminates the need for a high-current switch on the input wiring. The remote on/off connection can be controlled by a power saving switch or by the motor's run/stop switch (see manual).
All models with an adjustable output can also be used as a battery charger. For example, to charge a 12 V starter or auxiliary battery in an otherwise 24 V system.
All models with adjustable output can be connected in parallel to increase the output current. Up to five devices can be connected in parallel.
Models:
12 / 24 Volt
ORI122410020
Data sheet
- Input voltage
- 9-18V
- Output voltage
- 20-30V
- Output voltage Characteristic
- Adjustable fixed voltage
- Connections
- Flat plug 6.3 mm
- Galvanic insulation
- NO
- Feature
- Switch-off voltage 8V, switch-on voltage 10V
- Dimension
- 45 x 90 x 125mm
- Weight
- 0.4kg
- Note
- No remote control
- Note
- no fan ventilation
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-dc-dc-converters-12v-24v-48v-110v#datasheet
Specific References
- EAN13
- 8719076022749
- MPN
- ORI122410020
