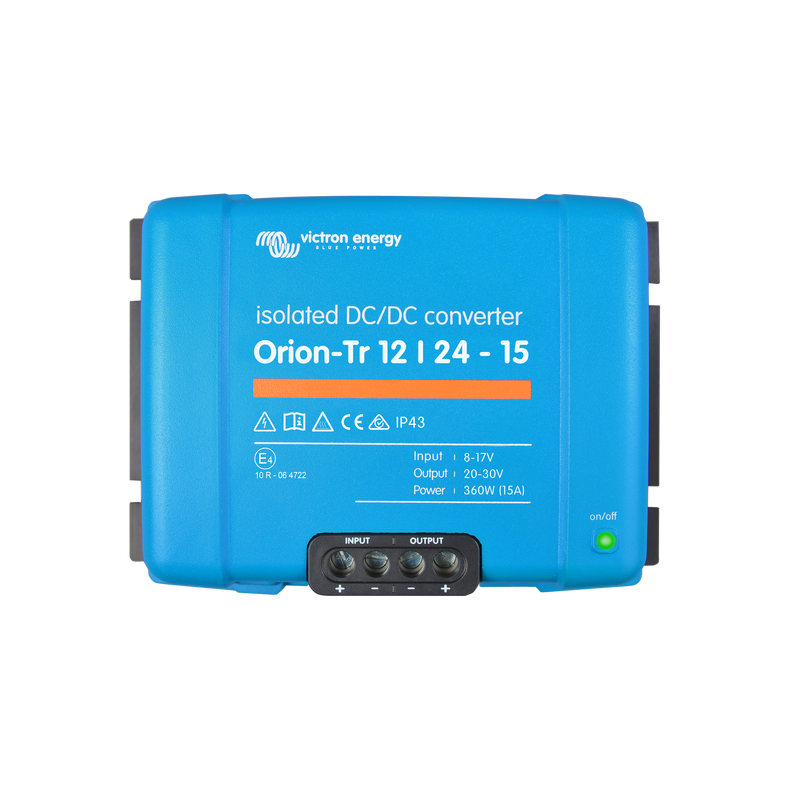

Orion-Tr 12/24-15A (360W) - insulated
ORI122441110
Orion-Tr 12/24-15 (360W)
- Input voltage 10-17V, output voltage 20-30V, charging current 15Amp
- Efficiency: 87%, adjustable output voltage
- Remote control possible via 2-pin remote connection
Orion-Tr DC/DC converter, isolated:
Remote on/off switch
The remote on/off circuit eliminates the need for a high-current switch on the input wiring. The remote on/off connection can be controlled by a power saving switch or by the motor's run/stop switch (see manual).
Adjustable output voltage:
Can also be used as a battery charger For example, to charge a 12 V starter or auxiliary battery in an otherwise 24 V system.
All models are short-circuit-proof and can be connected in parallel to increase the output current. An unlimited number of devices can be connected in parallel.
IP43 protection: If the device is installed with the screw terminals facing downwards.
Screw terminals: No special tools are required for installation.
Input fuse: Only on the 12 V and 24 V models
Models:
12 / 24 / 48 Volt
ORI122441110
Data sheet
- Input voltage
- 10-17V
- Output voltage
- 20-30V
- Amperage
- 15A
- Connections
- Open ends
- Cable cross-section
- 16mm2
- Dimension
- 130 x 186 x 80mm
- Weight
- 1.8kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-tr-dc-dc-converters-isolated#datasheet
Specific References
- EAN13
- 8719076038832
