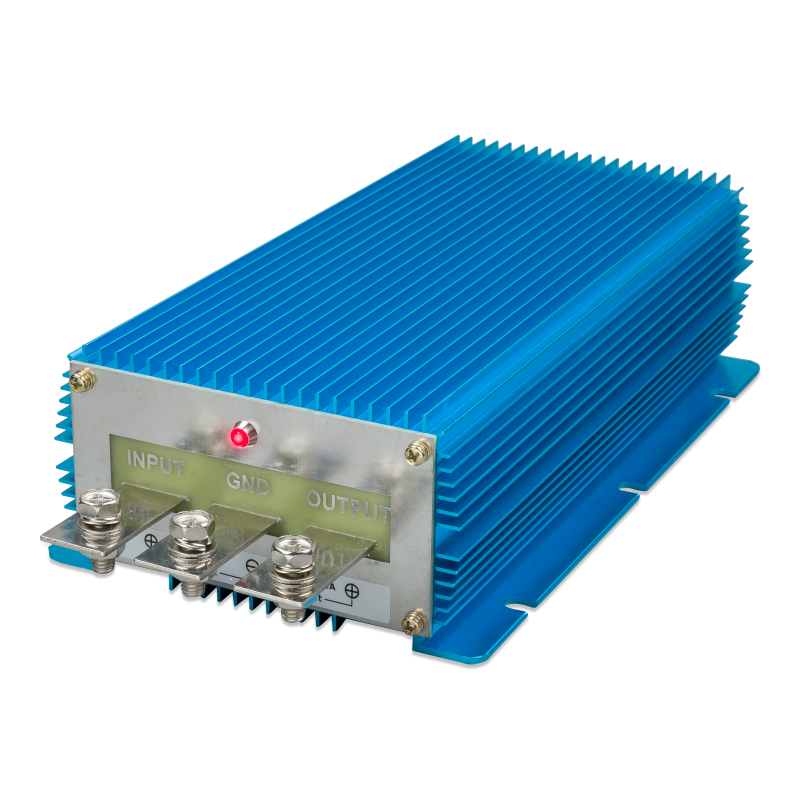

Orion IP67 24/12-100 (1200W) - non-insulated
ORI241221226
Orion IP67 24/12-100 (1200W)
- Input voltage 18-35V, output voltage 12V +/- 3%,
- current 100Amp, efficiency: 96%, M6 bolt
- short-circuit proof
Orion IP67 24/12 and 12/24 DC-DC converter
Fully encapsulated: waterproof, shockproof and fire-retardant.
Water, oil or dirt cannot damage the Orion IP67 DC-DC converter. The housing is made of cast aluminium and the electronics are coated with resin.
Wide input voltage range
With an input voltage range of 15 to 40 volts, a stable output is guaranteed during voltage surges or undervoltages caused by other devices
connected to the same battery.
Overheating protection
Can be used in a hot environment such as an engine room.
ORI241221226
Data sheet
- Input voltage
- 18-35V
- Output voltage
- 12V
- Amperage
- 100A
- Output voltage Characteristic
- Fixed voltage
- Connections
- M6
- Galvanic insulation
- NO
- Protection class IP
- IP 67
- Dimension
- 265 x 127 x 63mm
- Weight
- 2.15kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/dc-dc-converters/orion-ip67-24-12-dc-dc-converters#datasheet
Specific References
- EAN13
- 8719076048541
