Featured products

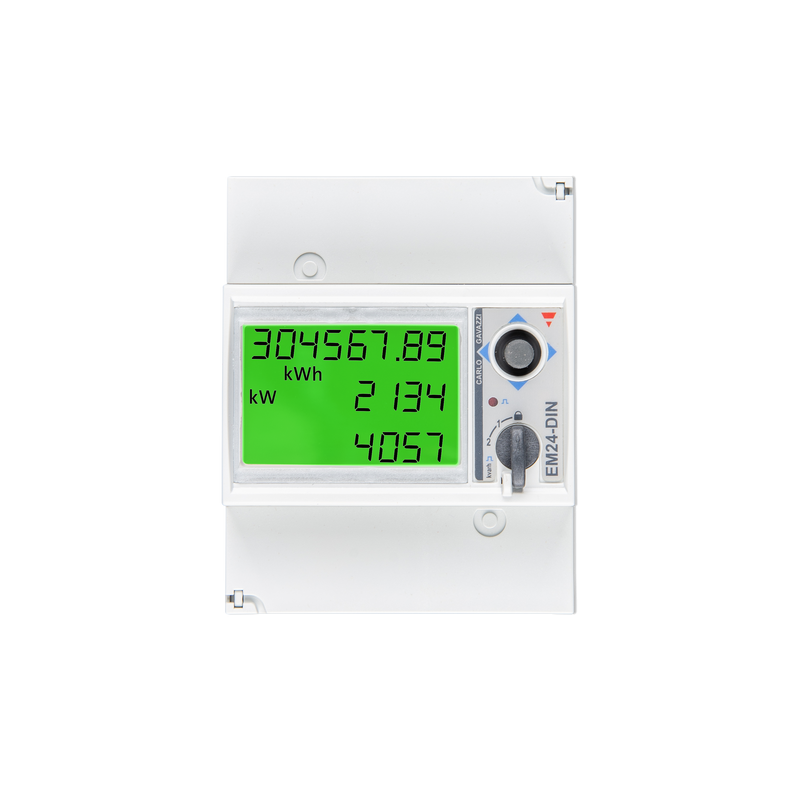

EM24 energy meter - 3 phases, max. 65A/P, Ethernet
REL200200100
AC 3-phase electricity meter
- for AC alternating current measurement of
generators, consumers, PV or for ESS
- 3 phases, Ethernet interface, display
Accessories / Levy
Installation
Energy meters ET112, ET340 & EM24
The ET112 (for single-phase operation with max. 100 A) and the ET340 (for three-phase operation with max. 65 A) are energy meters that are usually used in energy storage systems.
The EM24 is only designed for monitoring three-phase operating modes.
There is an EM24 meter model for an RS485 connection and one that can be connected via Ethernet. All ET models can be connected via RS485.
With ESS (Energy Storage Systems), the power and energy of the entire application are measured in the distribution box, so zero consumption can be achieved.
It can also be used to measure the output of a PV inverter or a generator.
Other AC loads can also be monitored.
The data is then displayed on the Color Control GX and the VRM portal.
Please contact us for detailed information on visualisation
--> Please contact us in the event of communication problems with the EM24 via Ethernet.
A firmware update solves such problems. A corresponding file is available from us!
REL200200100
Data sheet
- Amperage
- 65A AC
- Interface
- Ethernet
- Note
- 3 phases
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/meters-and-sensors/energy-meter#downloads-datasheets
- Manufacturer data sheet & operating instructions
- http://www.productselection.net/MANUALS/UK/em24_E1_im_use.pdf
- System voltage
- 230VAC
Specific References
- EAN13
- 8719076051268
