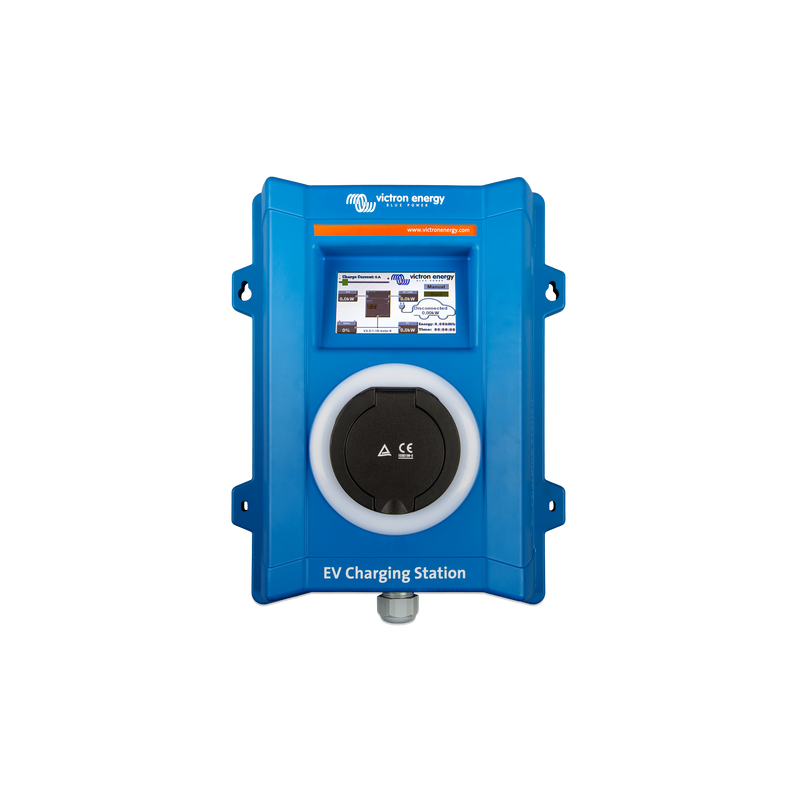

EV charging station
EVC300400300
EV charging station for Victron systems
- 230V, 1 or 3 phase, charging current 6 - 32Amp,
- Manual & Auto charging mode (PV surplus)
- LED light ring for charge status display
EV charging station for Victron systems
The EV charging station can be used in both three-phase and single-phase mode. It delivers a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode.
It has a 4.3-inch LCD touchscreen for monitoring and control.
Manual mode
for configuring the output current between 6-32A.
The charging power can be adjusted using the slider on the LCD touchscreen or via the website.
The charging process can be started or stopped manually when a vehicle is connected to the charging station.
Automatic mode
to ensure maximum efficiency of the PV system
It recognises when excess energy is available and uses only this energy to charge the vehicle. (available in the near future)
The internal Wi-Fi module can be configured for initial setup as well as for monitoring in access point mode or station mode.
It has a 4.3-inch LCD touchscreen for monitoring and control.
A programmable RGB light ring around the charging port is used to quickly recognise the device status.
Different light effects indicate the status (disconnected, charging, charged, etc.).
The aim is to help the user recognise the current status remotely.
The EV charging station can be configured and monitored via the GX display devices and the VRM remote console.
EVC300400300
Data sheet
- Input voltage
- 170- 265 VAC
- Discharge current
- 32A / phase
- Connections
- IEC 62196 Type 2
- Protection class IP
- IP 44
- Interface
- Modbus TCP over WIFI
- Interface
- 802.11 b/g/n (2.4Ghz only)
- Performance
- 22kW
- Feature
- adjustable charging current 6 - 32A
- Dimension
- 390 x 300 x 150mm
- Weight
- 3kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/accessories/ev-charging-station#datasheet
Specific References
- EAN13
- 8719076051305
EV charging station for Victron systems
- 230V, 1 or 3 phase, charging current 6 - 32Amp,
- Manual & Auto charging mode (PV surplus)
- LED light ring for charge status display
