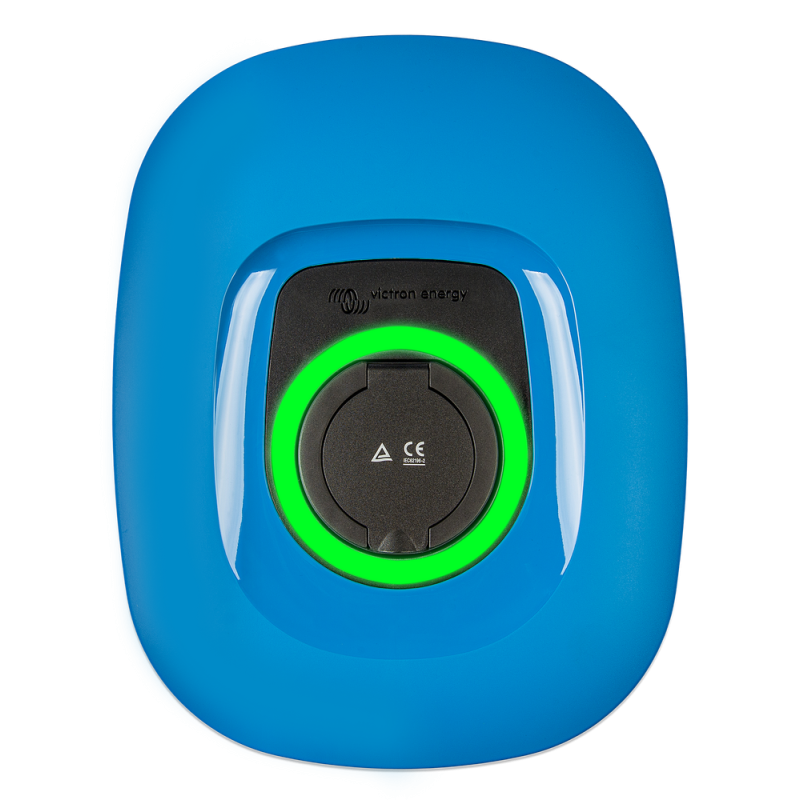

EV charging station NS - Blue
EVC200300200
EV charging station NS for Victron systems
- 230V, 1 or 3 phase, charging current 6 - 32Amp,
- Manual & Auto charging mode (PV surplus)
- LED light ring for charge status display
EV charging station NS for Victron systems
The EV charging station can be used in both three-phase and single-phase mode. It delivers a maximum of 22 kW AC in three-phase mode or 7.3 kW in single-phase mode.
The device is technically identical to the EV charging station, but has a new, modern design that is available in 3 colours and does not have a built-in LCD screen. The initial setup, configuration and monitoring is done via VictronConnect via Bluetooth and/or the integrated web interface via a WiFi access point or WiFi LAN.
The charging station can be fully integrated and remotely controlled with a Victron Energy GX device and VRM.
Not only can the NS charging station be fully integrated with an Victron Energy GX device and VRM, but it can also be set to utilise excess solar energy directly to charge your vehicle if you have a solar installation (within the Victron ecosystem). Manual and timed modes offer even more flexibility to respond to the needs of the vehicle depending on the system.
A programmable RGB light ring around the charging port is used to quickly recognise the status of the device.
Different light effects indicate the status (disconnected, charging, charged, etc.).
The aim is to help the user recognise the current status from a distance.
EVC200300200
Data sheet
- Input voltage
- 170- 265 VAC
- Discharge current
- 32A / phase
- Connections
- Modbus TCP over WIFI
- Protection class IP
- IP 44
- Interface
- Bluetooth
- Interface
- Modbus TCP over WIFI
- Interface
- Modbus TCP over WIFI
- Cable cross-section
- 6 - 10mm2
- Performance
- 22kW
- Feature
- Modbus TCP over WIFI
- Dimension
- 372 x 292 x 122 mm
- Weight
- 3kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/ev-charging/ev-charging-station-ns#datasheet
Specific References
- EAN13
- 8719076058274
- MPN
- EVC200300200
EV charging station NS for Victron systems
- 230V, 1 or 3 phase, charging current 6 - 32Amp,
- Manual & Auto charging mode (PV surplus)
- LED light ring for charge status display
