Sun Inverter 12/250-15 IEC
SIN121251100
Inverter & PWM solar controller - 12V 250VA / 15A
- Battery pack 12V, power 200W, peak 400W
- PWM solar controller 15A, 25V (375W)
- VE.Direct & Bluethoot interface for system integration
- no solar data via interface, only inverter
Accessories / Levy
Controll panels
Programmierung
|
|

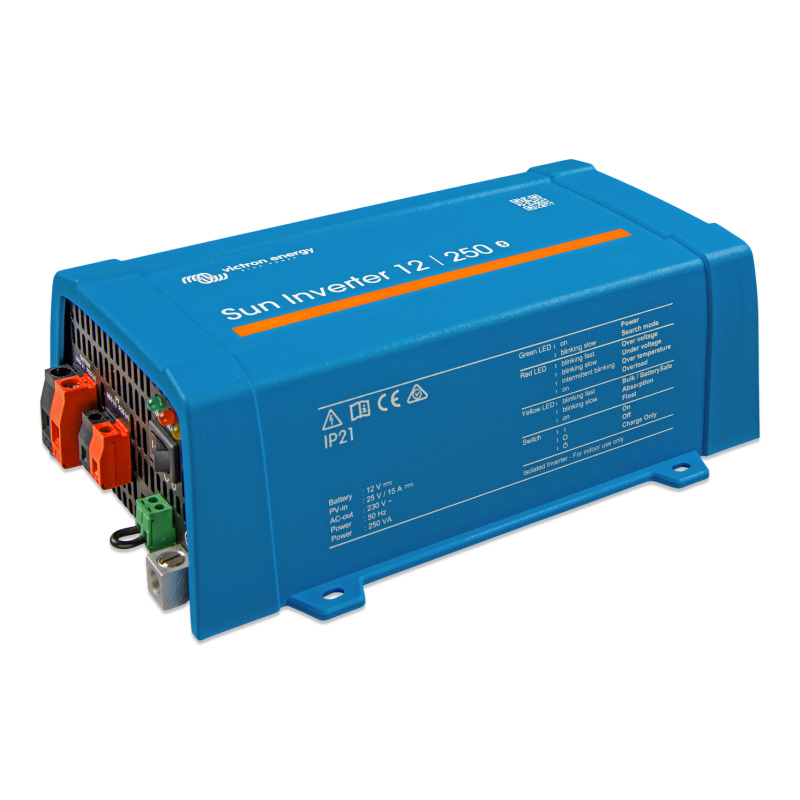

Sun Inverter 12/250-15
The Sun Inverter combines a sine wave inverter and a PWM solar charger in one housing and is easy to install with a minimum of wiring.
With the inverter, you can operate household appliances that require 230 V alternating current with 12 V or 24 V leisure or car batteries.
The solar charger ensures that the batteries are charged by the energy generated by your solar cells. The charging algorithm is programmable.
The parameters of the inverter and the solar charger can be read out via Bluetooth using the VictronConnect app. In addition, the inverter has a VE.Direct port for connection to a GX device or GlobalLink 520 for system monitoring.
Control from a BMS for charge/discharge disconnection is also possible.
Models:
12V|250VA and 24V|250VA
VictronConnect
With VictronConnect you can query live status information and configure all Victron products that either have a built-in Bluetooth function or are connected to a VE.Direct Bluetooth Smart Dongle.
SIN121251100
Data sheet
- Output voltage
- 230 VAC
- Battery voltage
- 12V
- Nominal PV power 12V
- 375W
- PV input voltage
- 25V
- Connections
- Open ends 10mm2
- Connections
- Open ends 4mm2
- Inverter power (25°) W
- 200W
- Inverter power peak
- 400W
- Protection class IP
- IP 21
- Interface
- VE.Direct & Bluetooth
- Protection
- 2x 30A internally soldered
- Output
- IEC
- Parallel / 3 phase
- NO
- Dimension
- 86 x 165 x 260mm
- Weight
- 2.7kg
- Max. Solar current (A)
- 15a
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/inverters/sun-inverter#manuals
Specific References
- EAN13
- 8719076053699
