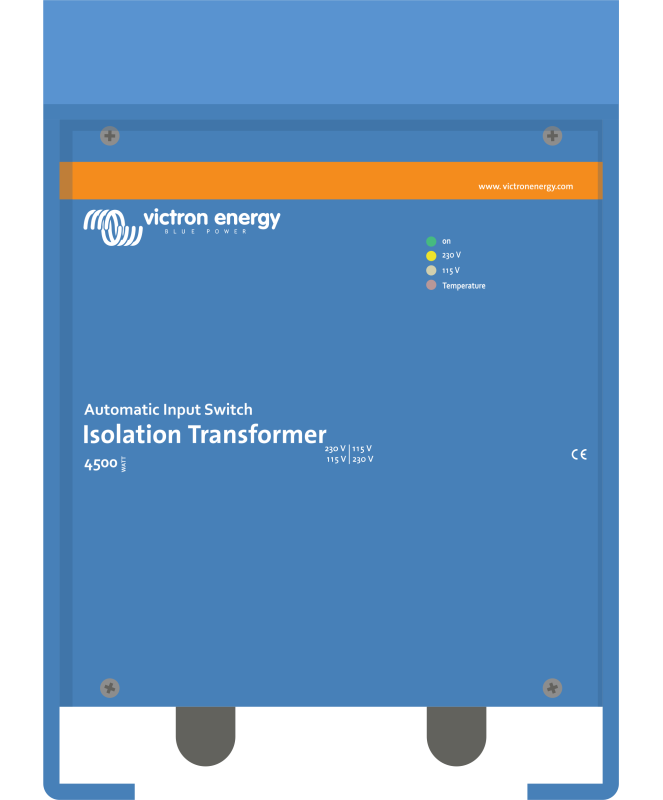

Isolation Transformer 4500W Auto 115/230V
ITR050452042
4500 W isolation transformer with automatic input detection
Input: 115/230 V; output: 120/240 V; rated current: 38/19 A; 50/60 Hz, soft start, IP21.
Galvanic isolation for shore-power systems
The toroidal transformer galvanically separates the onboard system from shore power, improves safety and reduces galvanic corrosion. Soft start limits inrush current.
• 4500 W
• Input/output: 115/230 V / 120/240 V
• Rated current: 38/19 A
• 50/60 Hz, IP21
• 362 × 258 × 221 mm, 21,8 kg
Installation and protection must be completed by a qualified electrician.
ITR050452042
Data sheet
- Input voltage
- 115 / 230 V AC
- Output voltage
- 120 / 240 VAC
- Frequency
- 50 / 60 Hz
- Amperage
- 38 A / 19 A
- Galvanic insulation
- YES
- Protection class IP
- IP 21
- Feature
- Softstart
- Dimension
- 362 × 258 × 221 mm
- Weight
- 21.8 kg
- Note
- No frequency change
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.com/media/pg/Isolation_Transformer_4500W_Auto/en/index-en.html
Specific References
- EAN13
- 8719076022565
- MPN
- ITR050362041
