- New

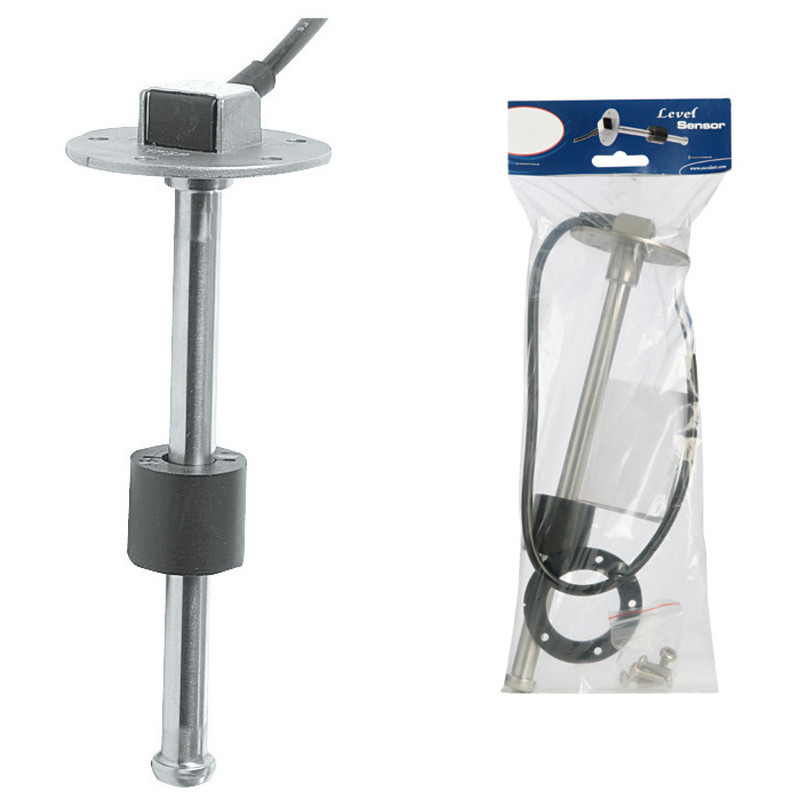

Level / tank sensor 240/33 Ohm - 53 cm
NG-27.160.53
Tank sensor for Cerbo GX - 53cm
- Resistance sensor 240/33Ohm
suitable for Victron Cerbo GX
- shaft length 53cm,
- 5 hole mounting flange 69 / 38mm
Level / tank sensor 240/33 Ohm - 53 cm
This tank sensor / level sensor is suitable for direct connection to the Victron Cerbo GX or the Ekrano GX and is available in various lengths.
This is a resistance sensor with 240 to 33 Ohm (240-30 Ohm).
This sensor can be used for both water and fuels.
It is not recommended for black water as solids in the water can block the sensor.
Simple direct connection
In contrast to voltage and current sensors, this resistance sensor can be connected directly to one of the 4 tank inputs of the Cerbo GX or the Ekrano GX from Victron Energy. You do not need a GX Tank 140 interface for this.
The sensor has an approx. 30cm long connection cable with 2 strands. This can easily be extended.
If you need more than 4 tanks, additional sensors can be connected via the GX Tank 140 interface.
!!! Attention for the GX Tank 140 you need voltage or current sensors!!!
Precise configuration
The sensor can be precisely configured via the Cerbo GX, and tanks can also be un-moulded, for example in the hulls of ships.
Customised lengths
Encoders can be manufactured to customised lengths if 10 units are purchased.
The sensor is also available in the European version with 10/180 Ohm.
Please ask us.
NG-27.160.53
Data sheet
- Feature
- 10/180 Ohm
- Feature
- Edelstahl AISI 316
- Shank length
- 20cm
- Hint
- 5 Loch Flansch 69 / 38mm
Tank sensor for Cerbo GX - 53cm
- Resistance sensor 240/33Ohm
suitable for Victron Cerbo GX
- shaft length 53cm,
- 5 hole mounting flange 69 / 38mm
