Featured products

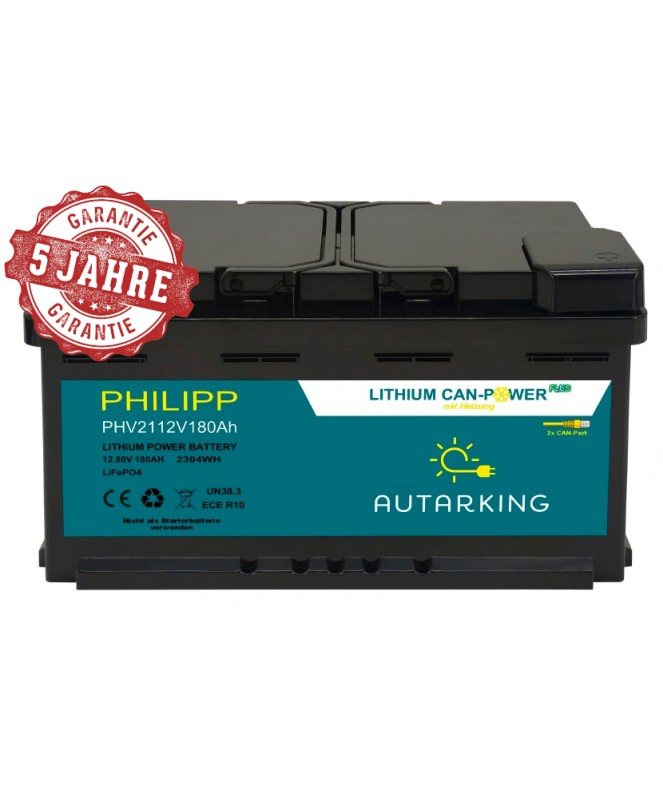

AUTARKING Philipp Lithium 180Ah - PRO HEAT, CAN - 12.8V
PHV2112V180AH
Lithium battery 12.8V 180Ah with heater and CAN connections
- Battery voltage 12.8V, capacity 180Ah, 16.5kg
- internal BMS with Bluetooth & CAN connection
- 5 Amp active balancer and CAN connection
- charge max. 200A, discharge max. 200A / 220A (5s)
- under seat battery T6
- 355 x 175 x 190mm
Accessories / Levy
VRG - prepaid recycling fee
|
VRG - Lithium, 13'001 - 16'000 gr. |
Lithium battery 12.8V 180Ah, CAN - under-seat battery for VW T6, T6.1, etc.
Longer service life
Up to 20 times longer cycle life and five times longer service life than lead-acid batteries.
Lighter weight
About 40% of the weight of a comparable lead-acid battery. Plug-and-play replacement for AGM/GEL batteries.
Higher performance
Delivers twice the power of a lead-acid battery, even at high discharge rates.
High temperature range
-20°C - 65°C.
Maximum safety
LiFePO4 batteries have a high level of intrinsic safety, which is further enhanced with our BMS.
A 5Amp active balancer helps to keep the cells balanced.
Monitoring
The AUTARKING lithium batteries are all equipped with a Bluetooth module and can therefore be monitored completely and easily.
In addition, the batteries have a CAN port via which the batteries can be connected directly to a Victron GX device. You will need an RJ45 cable of the required length.
Here you can see the connection assignment:
The CAN port on the GX device (Cerbo ect.) must be set to 500kbits/sec
AUTARKING Lithium Battery App
PHV2112V180AH
Data sheet
- Battery voltage
- 12.8V
- Capacity / Ah
- 180Ah
- Charging current
- 200A
- Discharge current
- 200A / max. 220A (5s)
- Battery length (mm)
- 355mm
- Battery width (mm)
- 175mm
- Battery height (mm)
- 190mm
- Protection class IP
- IP65 when not use for communication
- Interface
- Bluetooth, CAN, ON / OFF Schalter
- Feature
- Use in series up to max. 4 pieces 48V
- Feature
- 5 Amp active balancer
- Feature
- external on/off switch incl.
- Weight
- 11.6kg
- Battery chemistry
- LFP
- Charging voltage Bulk / Absorption
- 14.2V
- Charging voltage Float
- 13.5V
- Absorption time
- min. 1 hour depending on application 2 hours
- Charging temperature (°C)
- 0°C (-20° with heating) to 60°C
- Discharge temperature (°C)
- -20°C to 55°C
- Guarantee
- 5 years
- Cell type
- Prismatic cell - New A quality
- BMS Charge Voltage Cut-Off
- 14.6V
- BMS Discharge Cut-Off Voltage
- 10V
- Note
- Battery switches off accordingly outside the permitted temperatures.
- Note
- Use in series up to max. 4 pieces 48V
- Installation
- kann Pole oben oder auf der lange Seite liegend montiert werden!
- Certificates
- UN38.3 / MSDS / CE / ECE R10
- Pre-charge / PreCharge
- Yes
- Cell equalization
- Yes active 5A & passive 100mA
Specific References
- EAN13
- 7640268112294
- MPN
- PHV2112V180AH
