Solar Hook East-West Premium mounting kit for two modules

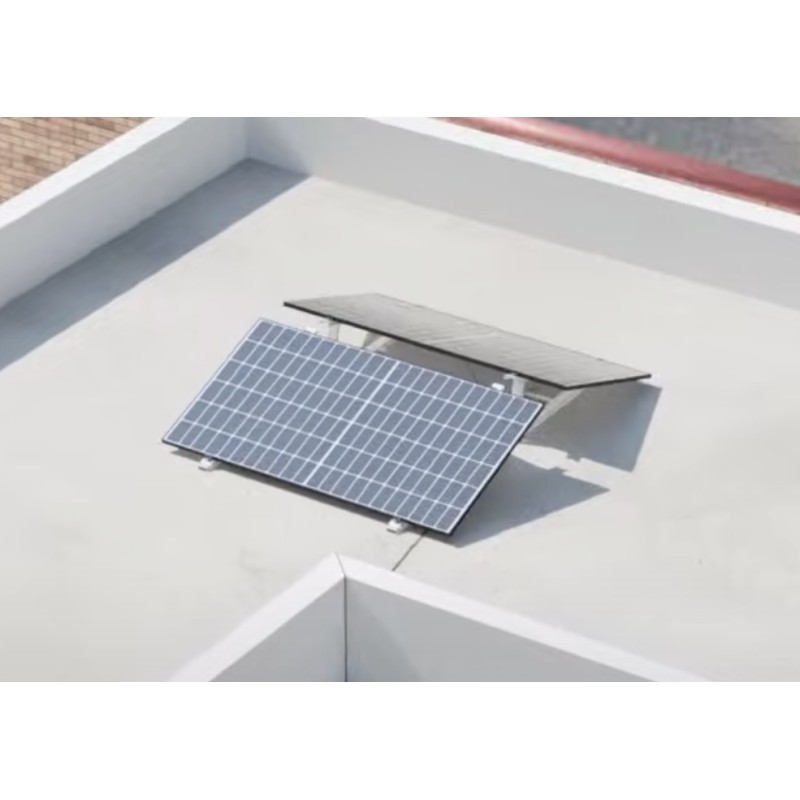

This set is specially made for mounting two modules in east-west orientation on a flat roof, ideal for a balcony power plant.
The set is suitable for solar modules with a length of up to 1724mm to 2094 mm.

All components are made of corrosion-resistant materials (aluminum and stainless steel).


--> For a better understanding of whether this set is suitable for your application and how to install it, take a look at the installation instructions or watch the installation video below.

Advantages:

- Pre-packed package.
- Optimum alignment of the modules in east-west direction.
- Double safety thanks to lugs and screw connection.
- Robust and weather-resistant design.
- Wide, continuous base rails for optimum load redistribution and low surface pressure.

Mounting kit for 2 solar modules consisting of:

4x foldable triangle pre-assembled incl. accessories
4x T-connector for weight support 1450 mm
2x connector for triangles for east-west system
8x hexagon head screw M6 x 75 with spacer sleeves and nuts M6
8x height-adjustable end clamp
24x self-tapping screw 4.8 x 19 mm
8x lock washer type S M8 for module clamps
8x Allen screw M8 x 25 for end clamp

Installation instructions

Installation instructions

Frequently asked questions

• Can the "East-West elevation" mounting system be used in areas with high wind speeds?

  Yes, the "East-West elevation" mounting system has been developed to withstand strong wind speeds. Depending on the specific wind loads and the location of the installation, additional fastening may be required.

• Does the "East-West elevation" mounting system require regular maintenance?

  The "East-West elevation" mounting system is low-maintenance. It is recommended to visually inspect the system regularly to ensure that all connections and fasteners are tight. In addition, regular cleaning of the solar modules in accordance with the manufacturer's guidelines will help to maintain optimum performance.

• Has the east-west elevation been tested for safety?

  Yes, the east-west elevation has been statically calculated to ensure that it meets all relevant safety standards and regulations.

• Can the "East-West elevation" mounting system be easily dismantled or moved if necessary?

  Yes, the "East-West elevation" mounting system has been designed so that it can be easily dismantled and reinstalled when required. This ensures flexibility, both for maintenance work on the roof and in the event that you decide to move your solar module system to another location.
