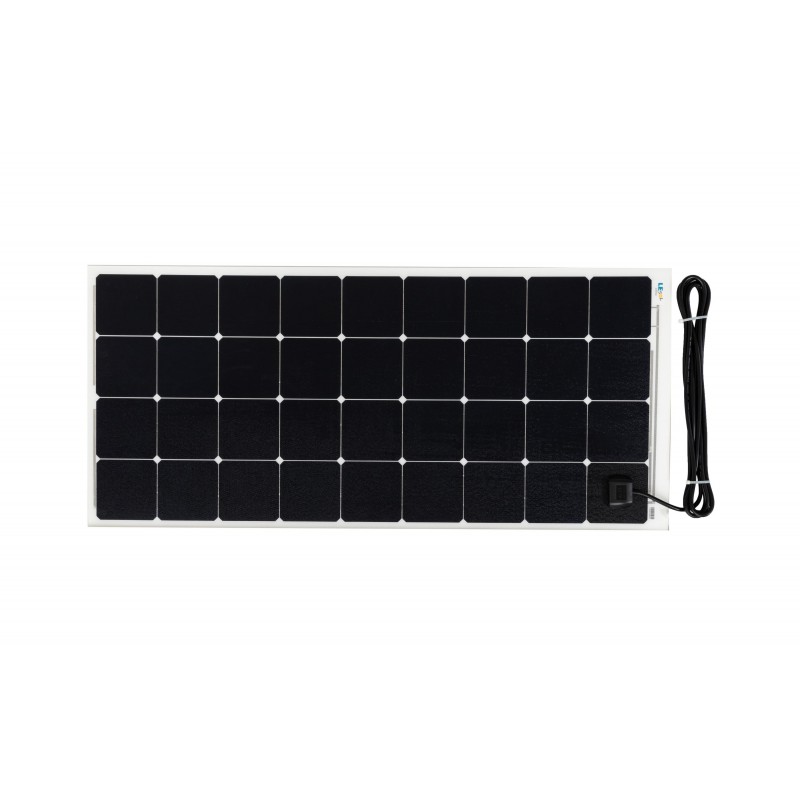

AUTARKING - Soléne solar module 85W ETFE
AUTARKING085C2
Solar module semi-flexible 85Wp
- Battery voltage 12V, power 85Wp
- efficiency: ~23%, 2.5kg, IP67, 5m 2x2.5mm2 cable
- 820 x 540 x 4mm (25mm)
Accessories / Levy
Solar charge controller
Solar installation
Cable accessories
AUTARKING high-performance solar modules
The AUTARKING Soléne solar modules are suitable for use in a wide range of environments, including salt water. The modules are maintenance-free and have a long service life. The most important technical features of AUTARKING Soléne modules are the SunPower solar cells and the ETFE surface with a very hard and robust structure. Thanks to the use of different light spectra and their low temperature coefficient, the solar cells of AUTARKING modules are ideal for all kinds of weather conditions that can occur throughout the year, even extreme heat. AUTARKING solar modules are flexible and can therefore be installed in places where conventional solar modules are unsuitable.
Flexible module
Ideal for installation on curved roofs and surfaces. Specially designed for motor and sailing boat decks, motorhomes, caravans and camper vans.
SunPower cells from America
Monocrystalline SunPower solar cells with an efficiency of 23%. Extremely heat-resistant: The energy yield remains high even in extreme heat.
Robust construction
AUTARKING Soléne: ETFE coating: extremely durable, weather-resistant. Textured surface: non-slip. Easy installation thanks to the 3M double-sided adhesive tape on the back.
Self-cleaning surface. Salt water and UV resistant.
More energy
Extremely lightweight with a high power-to-weight ratio. Highly efficient solar cells provide a powerful energy source with a small footprint.
Connection
There are two diodes in the connection box, which prevent the current from flowing back and protect the cells. The connection cable is 5m long, UV-resistant and break-proof.
AUTARKING085C2
Data sheet
- Panel power
- 85Wp
- Connections
- Open ends
- Solar panel length (mm)
- 820mm
- Solar panel width (mm)
- 540mm
- Solar panel height (mm)
- 4mm (25mm)
- Solar panel Vmpp
- 28.6V
- Solar panel Impp
- 3A
- Protection class IP
- IP 67
- Cable cross-section
- 2x2.5mm2
- Feature
- Adhesive: 3M™ VHB™ Tape
- Weight
- 2kg
- Guarantee
- 5 years
- Manufacturer data sheet & operating instructions
- https://manual.autarking.ch/#solar
- System voltage
- 12V
Specific References
- EAN13
- 7649989717276
- MPN
- AUTARKING085C2
Solar module semi-flexible 85Wp
- Battery voltage 12V, power 85Wp
- efficiency: ~23%, 2.5kg, IP67, 5m 2x2.5mm2 cable
- 820 x 540 x 4mm (25mm)
