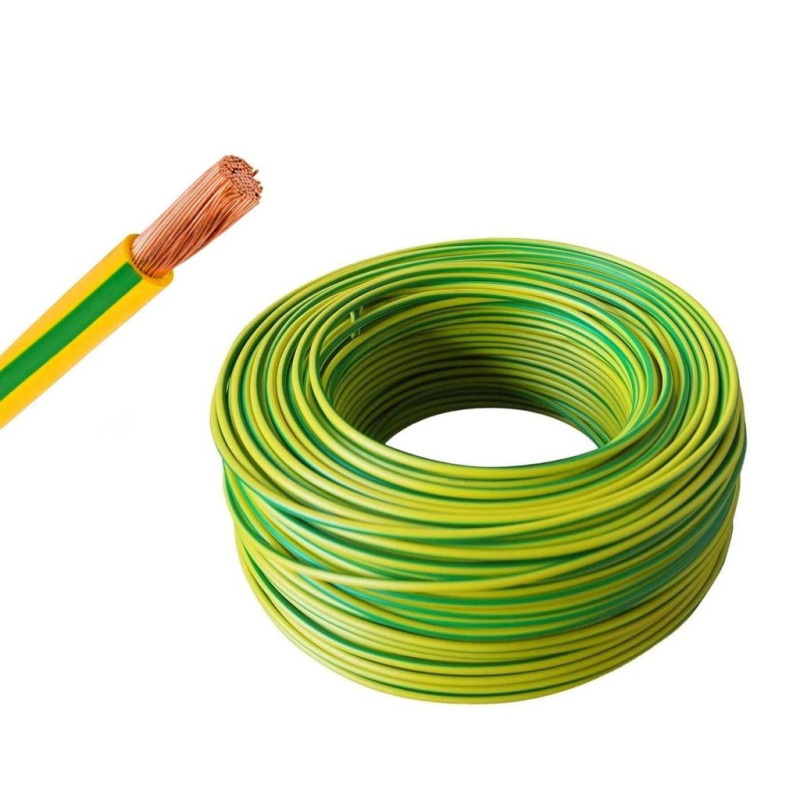

T-strand 16mm² green-yellow for potential equalisation
EG-113004350
Potential equalisation stranded wire 16mm2 - (by the metre)
- 16mm2 T-strand green / yellow
- suitable for potential equalisation of photovoltaic systems
- cable length made to measure
Accessories / Levy
Installation
Potential equalisation T-strand 16mm² green-yellow
Solar panels on the roof must have potential equalisation.
Solar panels that are mounted on the same aluminium support are usually connected to each other and to the aluminium structure via the fastening clamps. If several rows are built, these must also be connected to each other.
This connection is made using an 8 mm aluminium wire and corresponding terminals.
The entire system must then be connected to earth for equipotential bonding. This can be realised in different ways. Either via an earthed roof hanger or, as in most cases, via a separate potential equalisation line. This then leads to the potential equalisation at the house distribution board or a separate earthing system.
This 16mm2 earthing / potential equalisation cable is used for this purpose.
Order this cable to the required length.
If required, we can also crimp on the appropriate cable lugs.
Please contact us for this. 055 505 22 30
EG-113004350
Data sheet
- Cable cross-section
- 16mm2
- Feature
- Fire behavior class according to EN 13501-6: Eca
- Dimension
- Outside diameter 8mm
- Manufacturer data sheet & operating instructions
- https://www.elektrogrosshandel.ch/de/item/t-litze-16mm2-grun-gelb-eca-113004350
- System voltage
- Test voltage 2000V
- System voltage
- Brandverhaltensklasse nach EN 13501-6: Eca
- System voltage
- Brandverhaltensklasse nach EN 13501-6: Eca
