Solar Kabel - Verlängerung (4 mm2) 3m, mit MC4 (PV-ST01) Stecker & Buchse

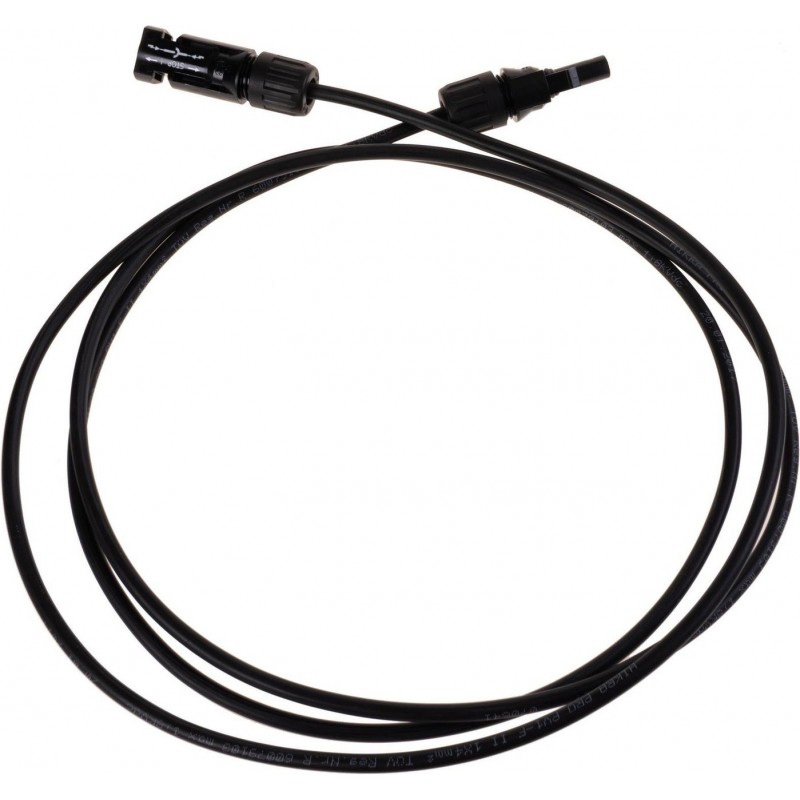

Solar extension cable (4 mm2) 2m, with MC4 plug & socket

Reference: SCA24Solene2m

Solar extension cable 4mm2 - 2m

- 1 cable with one MC4 plug & one MC4 socket
- double insulated made of halogen-free, cross-linked polyolefin
- UV & ozone resistant, cable length: 2m

CHF19.75

Tax excluded

CHF21.35 inkl. MwSt.

Add to my wishlist

Available immediately - 1-2 days*

Lagerbestand: 16 Stk.

Im Zulauf: 0 Stk.

Solar extension cable (1 cable a 2m), 4mm2

Set consisting of:

- One 2m cable: one end with MC-4 plug (w) and one end with MC-4 plug (m) pressed.

Technical data cable

Rated voltage 1500V / max. 1800V (U0) (IEC)
Test voltage acc. to EN 50395-6 6.5kV AC / 15 kV DC (5 min)
Rated current 55A (4mm2)
Insulation resistance acc. to EN 50395-8.2 > 1000Mohmkm
Ambient temperature range -40°C ... +90°C
Conductor limit temperature 120°C
Bending radius dynamic, >5 x OD
static, >4 x OD
Resistant to UV, ozone, hydrolysis
Resistant to (IEC 60811-2-1 acids, alkalis, oil (IRM 902)
Insulation acc. to IEC 60332-1-2 Flame retardant, particularly low smoke emission
TÜV certified acc. to EN50618 - R50359551

Technical data connector

Plug: Stäubli Multi Contact original MC4 (PV-ST01)

Connector system: 4mm2 diameter
Rated voltage: 1000 V DC (IEC 62852), 1500 V DC (2Pfg2330)
Rated current TÜV (85°C): 39A (4, 6mm2)
Ambient temperature range: -40°C ... +85°C
Limit temperature: 105°C
Protection class mated: IP65, IP68 (1h/1m)
unplugged: IP2X
Connection type: Crimping
Contact material: Copper, tin-plated
Flame class: UL94-V0
TÜV-Rheinland certified according to IEC 62852: R60111354,
according to 2PfG2330: R60087448
