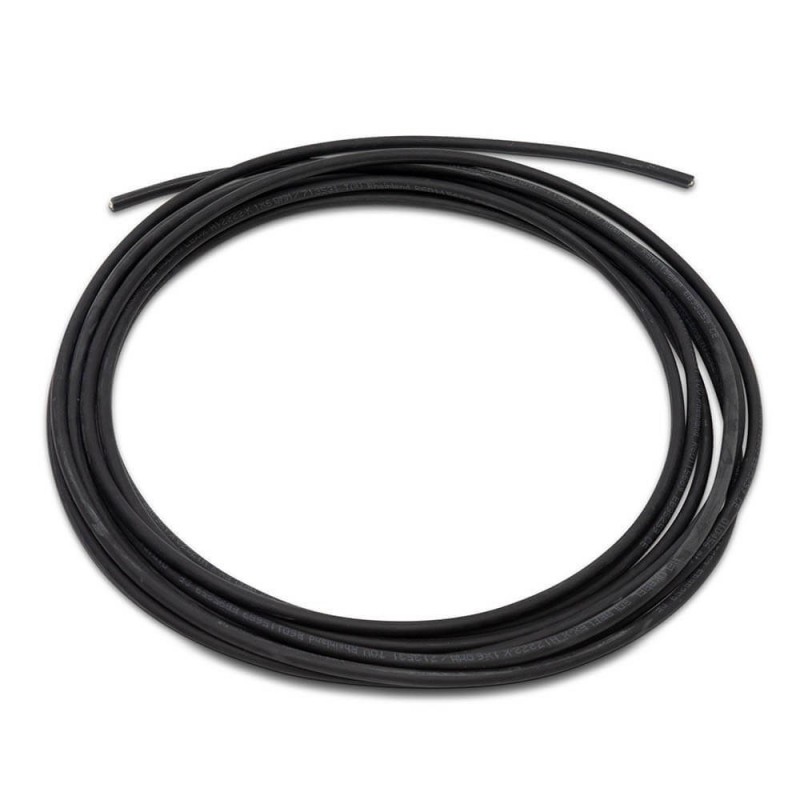

Solar cable Flex-Sol 6mm2 - 20m
PV cable 20m, with double insulation made of halogen-free, cross-linked polyolefin for use in photovoltaic systems in mobile and stationary applications. This cable can be used with our MC4 coupling plugs and coupling sockets.
Technical data |
|
| Rated voltage | 1500V / max. 1800V (U0) (IEC) |
| Test voltage acc. to EN 50395-6 | 6.5kV AC / 15 kV DC (5 min) |
| Rated current | 55A (4mm2) 70A (6mm2) |
| Insulation resistance acc. to EN 50395-8.2 | > 1000Mohmkm |
| Ambient temperature range | -40°C ... +90°C |
| Conductor temperature limit | 120°C |
| Bending radius dynamic, static |
>5 x OD >4 x OD |
| Resistant to | UV, ozone, hydrolysis |
| Resistant to (IEC 60811-2-1) acids, alkalis, oil (IRM 902) | Acids, alkalis, oil (IRM 902) |
| Insulation according to IEC 60332-1-2 | flame retardant Particularly low smoke emission |
| TÜV certified according to EN50618 | R50359551 |
SCA06Solene20m
Data sheet
- Amperage
- 70A
- Cable length
- 20m
- Cable cross-section
- 6mm2
- Feature
- double insulated, UV resistant
- Manufacturer data sheet & operating instructions
- https://www.staubli.com/de-ch/connectors/elektrische-steckverbinder/steckverbinder-fuer-alternative-energien/pv-steckverbinder-und-kabel/
Specific References
- EAN13
- 7640268111402
- MPN
- SCA06Solene20m
