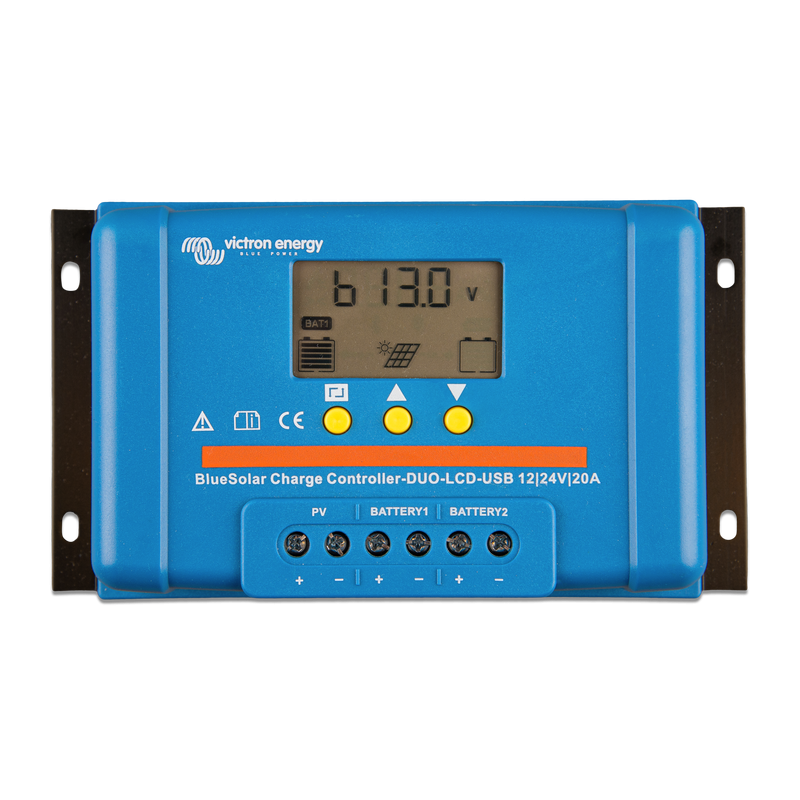

BlueSolar PWM DUO LCD&USB 12/24V-20A
SCC010020060
PWM solar charge controller 20Amp. for 2 batteries
- Battery voltage 12-24V, charging current 20Amp
- PWM charging technology, PV voltage up to 28/55V
- 2 x USB total 2A, display, temp. sensor incl.
Blue Solar 12/24V PWM DUO
- Liquid crystal display. For status monitoring and setup
- External temperature sensor including
- 2 separate battery outputs. Charging of two separate batteries. For example:
Starter battery and service battery of a boat or caravan.
- Protection: Protected against reverse polarity connection of the solar modules or battery
- Programmable battery charging algorithm. Algorithms for AGM, GEL or flooded
lead batteries and LiFePO4 batteries (with internal BMS).
- Two 5 volt USB outputs. Maximum current of both outputs combined: 2A
- Charge current ratio (in %) between both batteries adjustable
SCC010020060
Data sheet
- Output voltage
- 12 / 24V
- Charging current
- 20A
- Loading algorithm
- 3-stage
- PV input voltage
- 28V / 55V
- Output voltage Characteristic
- Charging characteristic
- Connections
- Open ends 16mm2
- Protection class IP
- IP 20
- Feature
- for 2 batteries
- Dimension
- 102 x 184 x 47mm
- Weight
- 0.3kg
- Scope of delivery
- Temperature sensor
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/solar-charge-controllers/bluesolar-pwm-charge-controller-lcd-usb#datasheets
Specific References
- EAN13
- 8719076046219
