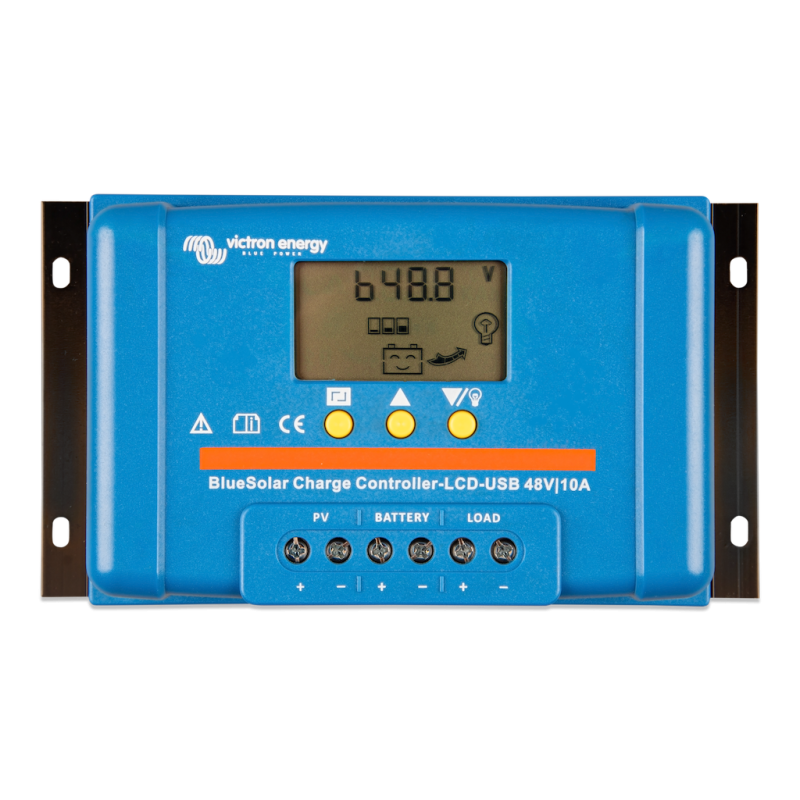

BlueSolar PWM-LCD&USB 48V-10A
SCC040010050
PWM-LCD&USB solar charge controller 10Amp.
- Battery voltage 48V, charging current 10Amp
- PWM charging technology, PV voltage 100V
- load output, 2x USB total 2A
BlueSolar PWM charge controller LCD&USB
- Liquid crystal display
- Two 5-volt USB outputs
- Three-stage battery charging (bulk, absorption, float), fully programmable
- Load output with undervoltage and manual switch-off (programmable)
- Lighting control function, fully programmable
- Load output protected against overload and short circuit
- Protected against reverse polarity of the solar modules and/or battery
Models:
12 / 24 / 48 Volt
SCC040010050
Data sheet
- Output voltage
- 48V
- Charging current
- 10A
- Loading algorithm
- 3-stage
- PV input voltage
- 100V
- Output voltage Characteristic
- Charging characteristic
- Connections
- Open ends 16mm2
- Load output
- Lighting control / voltage-controlled
- Protection class IP
- IP 20
- Output
- 2x USB 2A total
- Dimension
- 101 x 184 x 47mm
- Weight
- 0.3kg
- Note
- Lithium capable
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/solar-charge-controllers/bluesolar-pwm-charge-controller-lcd-usb#datasheets
Specific References
- EAN13
- 8719076046233
- MPN
- SCC040010050
