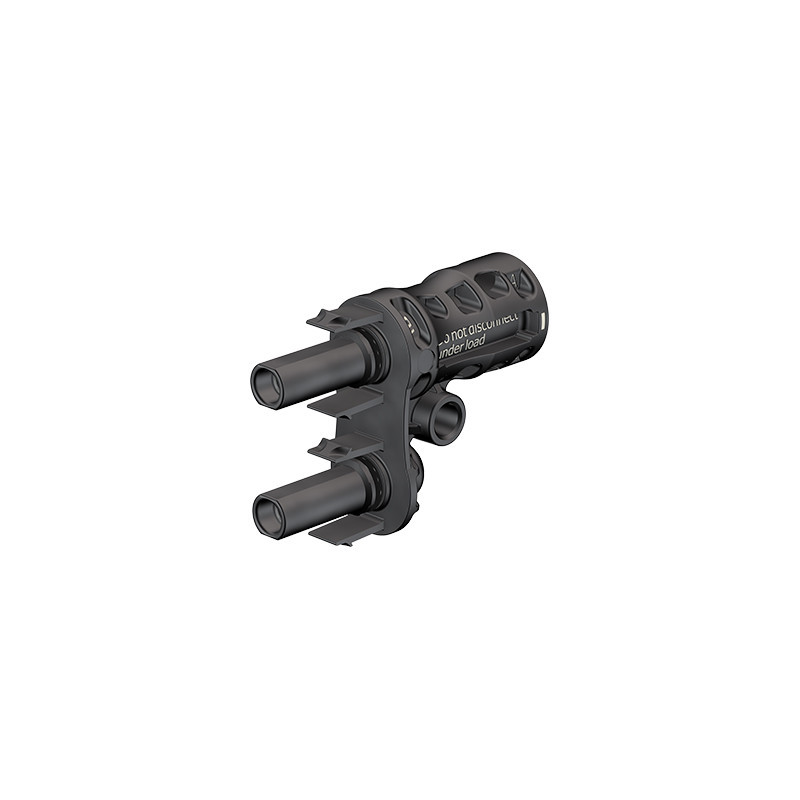

Junction socket MC4 Evo2 - Y piece 2x F 1x M
15.320.196ZB
MC4 Evo2 junction box (PV-AZB4-EVO 2-UR)
- 2x female 1x male (2+/-)
- Original Stäubli Multi Contact
Branch connector MC4-Evo 2
The world's first dual-certified DC 1500 V branch connector / Y-piece
MC4 Evo2 with 2x socket (F) and 1x plug (M) for parallel or parallel-serial installation of solar modules.
- "Plug-and-play": no crimping or torque tool required
- Versatile and compact
- Compatible with original MC4 and MC4-Evo 2 connectors
- Approved for DC 1500 V in accordance with IEC 62852 and UL 6703
- Resistant to salt spray
- Proven, long-term stable MULTILAM technology, resulting in consistently low power loss over the entire service life of the connectors
Type: PV-AZB4-EVO 2-UR
Art.Nr. : 32.0196
15.320.196ZB
Data sheet
- Plug (In / Out)
- MC4 Evo2
- Manufacturer data sheet & operating instructions
- https://www.staubli.com/content/dam/spot/SOL-Branch-Connector-MC4-Evo-2-11014100-en.pdf
Specific References
- EAN13
- 7649989717610
- MPN
- 15.320.196ZB
