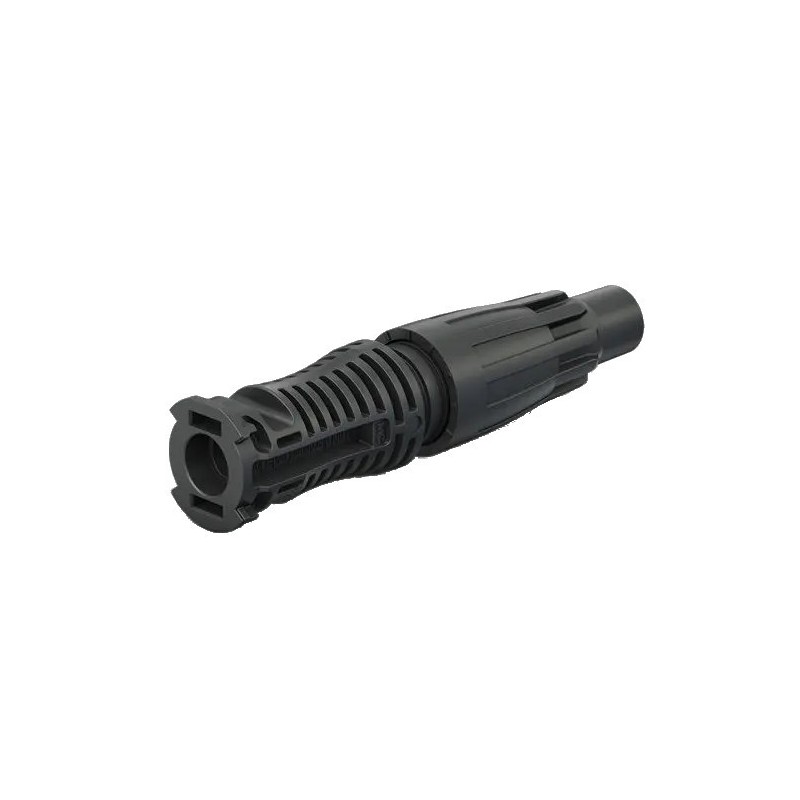

MC4 EVO ready coupling plug (crimpless assembly)

These original MC-4 plugs and sockets from Stäubli / Multi Contact can be assembled without tools / crimping pliersthanks to snap-in technology, they clamp the solar cable themselves.

MC4 PV connectors are the most commonly used connectors in the solar sector. Many solar modules and solar charge controllers are supplied with MC4 contacts as standard.

The couplings & plugs are suitable for our solar cables with 4mm2 and 6mm2
For cross-sections >6mm2 please contact us.

The original product is characterized by the following features:

• Suitable for cable cross-sections of 4 mm² and 6 mm²
• Outer cable diameter: 5.4 - 7.6 mm
• Pluggable with original MC4 product portfolio
• Rated voltage DC 1500 V
• Ambient temperature range: -40 °C ... +85 °C (IEC)
• Upper limit temperature: 115 °C (IEC)
• Protection class, mated: IP65/IP68 (1 m, 1 h)
• Type of connection: Spring terminal (tool-free connection)
• Fire protection class: UL94-V0
• TÜV Rheinland certified according to IEC 62852:2014+Amd. 1:2020
