Y-splitter cable MC4 EVO2 - 2xM 1xF
15.320.333ES

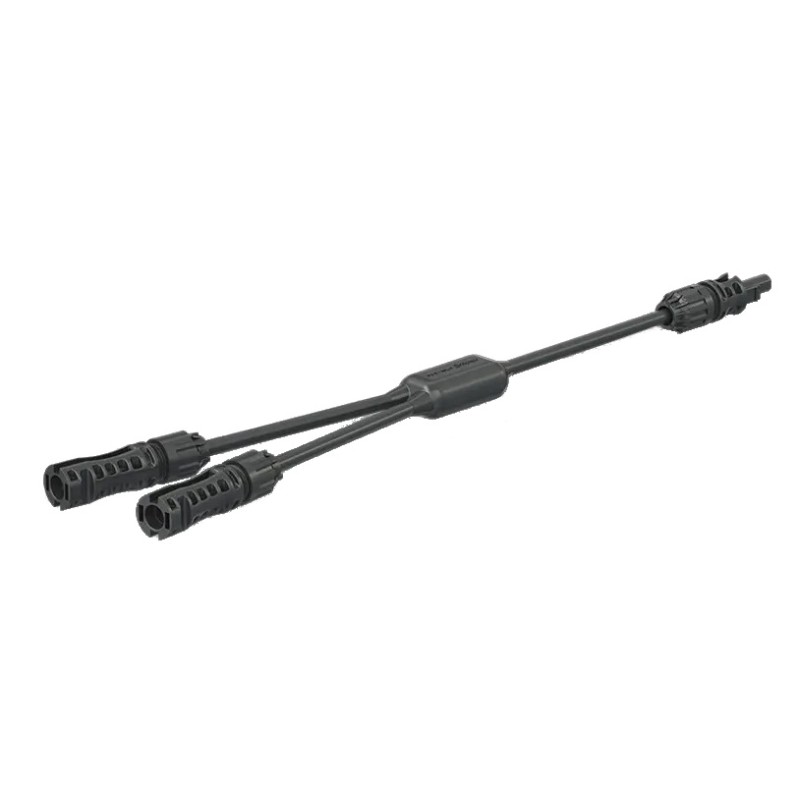

MC4-Evo 2 Y-splitter cable (PV-K/SPL-Y)
- 2x male, 1x female Evo2
- L = 0.5m, 6mm2
- 53Amp, 1500VDC
MC4-Evo 2 Y-splitter cable (PV-K/SPL-Y)
The Y-splitter cables or Y-pieces MC4 Evo 2 with 2x socket (W) and 1x plug (M) for parallel or parallel-serial installation of solar modules.
We supply the original MC4 plugs and sockets from Stäubli / Multi Contact.
MC4 is the most commonly used coupling in the solar sector. Many solar modules and solar charge controllers are supplied with MC4 contacts as standard.
Our DC cabling system offers first-class quality and outstanding functionality. The unique manufacturing process with vulcanization provides the highest IP protection and offers first-class performance even under harsh climatic conditions.
Technical specifications |
|
| Connector system | MC4-Evo2 |
| Rated voltage |
1500 V DC |
| Rated current (TÜV - 2PfG 1913) | 53A (6mm2) |
| Ambient temperature range | -40°C ... +85°C |
| Protection class mated, unmated |
IP65/IP68 (1m, 1h) IP2X |
| Installation material | PA, EVA, XLPE |
| Contact material | Copper, tin-plated |
| Max. Contact resistance of the plug connector | < 0.5 mOhm |
| Certified according to TÜV Rheinland 2PfG 1913 | R 60164319 |
Type: PV-K/SPL-Y-6-15/15-15EPP/ES-0050
Art. No. 32.0333
15.320.333ES
Data sheet
- Amperage
- max. 53A
- Cable length
- 0.5m
- Plug (In / Out)
- MC4 Evo2
- Note
- 2x male, 1x female
- System voltage
- max. 1500V DC
Specific References
- EAN13
- 7649989717481
- MPN
- 15.320.333ES
