Featured products

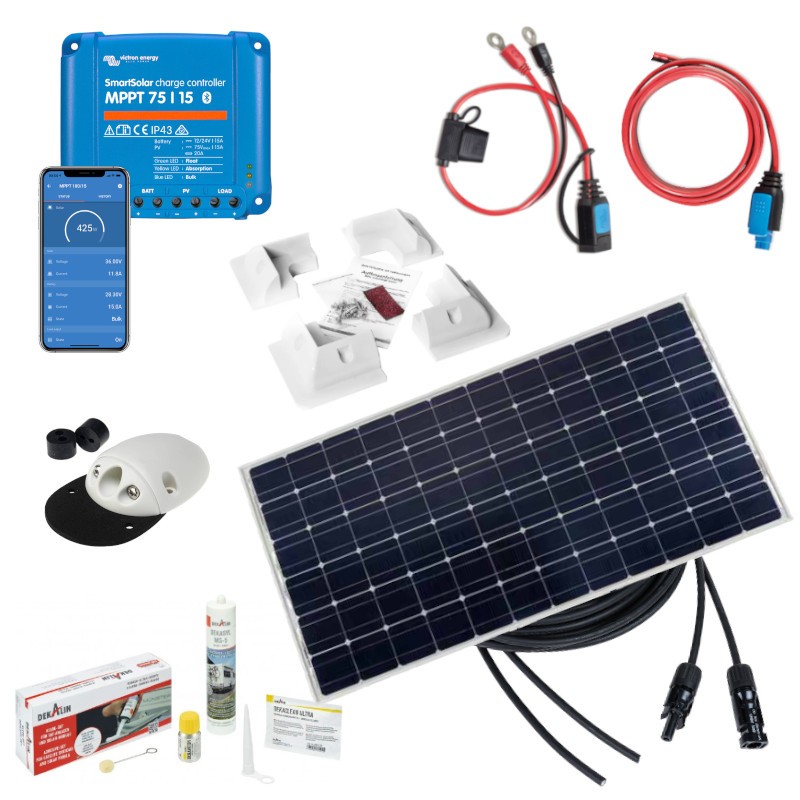

Solar Set 150Wp, Mono - Vehicle
AS-140-Set1
Solar set 150Wp for vehicle roof mounting
- Solar panel 150wp monocrystalline
- MPPT solar charge controller 75V/15Amp with Bluetooth
- Spoiler set for roof mounting incl. adhesive set
- Roof feed-through 2-fold, 5m extension cable MC4
- 2m battery cable, fuse & M8 battery connection
Solar set 150Wp for vehicle roof mounting
This 150Wp solar set for vehicle roof mounting offers you a generous source of energy from the sun.
In summer, a daily output of 490Wh - 560Wh (39Ah - 44Ah) can be expected.
This is enough to run a compressor cooler or charge your battery-powered tools and notebook.
Depending on usage, the radio will also play for a few hours.
The panel can be mounted quickly and securely with the spoiler mounting kit; the adhesive with primer and screws are also included in the set.
The cable feed-through allows the cables to enter the vehicle safely and dryly. The cables from the solar controller to the battery (2.2m) are also included in the kit.
The MPPT BlueSmart charge controller makes optimum use of the solar energy and can be stored in any battery.
The charging parameters and current data can be set and viewed via the Victron Connect app.
The connection of a small display enables data to be viewed independently of the cell phone.
Consumers up to 15Amp can be operated via the load output, so consumption can be visualized (app / display) and the battery can be protected against deep discharge. For larger consumers such as inverters etc., we will be happy to suggest a different solution.
The set consists of the following items:
- 150Wp monocrystalline solar panel
- SmartSolar MPPT 75/15
- Solar spoilercorner profile set
- Roof bushingwhite
- 5m solar extension cable incl. MC4 plug on one side
- 2m MPPT to battery extension cable
- Battery connection with M8 ring cable lugs, 30Amp fuse
Please note that the connection between the MPPT solar charge controller and the battery should not be longer than the supplied 2.2m!
VictronConnect
With VictronConnect you can query live status information and configure all Victron products that either have a built-in Bluetooth function or are connected to a VE.Direct Bluetooth Smart Dongle.
AS-140-Set1
Data sheet
- Battery voltage
- 12V
- Charging current
- Klebeset inkl. Primer - Spoilerset inkl. Schrauben und Schleifpapier
- Loading algorithm
- multi-stage, adaptive
- PV input voltage
- 75V
- Panel power
- 150Wp
- Connections
- MC4
- Connections
- M8
- Solar panel length (mm)
- 1423mm
- Solar panel width (mm)
- 668mm
- Solar panel height (mm)
- 30mm
- Interface
- VE.Direct & Bluetooth
- Cable length
- Solarpanel 5m, MC4 zu SAE 5m, SAE zu MPPT 5m, MPPT zu Batterie 2,2m
- Note
- Adhesive set incl. primer - Spoiler set incl. screws and sandpaper
- Manufacturer data sheet & operating instructions
- Klebeset inkl. Primer - Spoilerset inkl. Schrauben und Schleifpapier
- Manufacturer data sheet & operating instructions
- https://shop.autarking.ch/solar-install-material/2576-klebe-set-fuer-solarmodul-spoilermontage.html
- Manufacturer data sheet & operating instructions
- Klebeset inkl. Primer - Spoilerset inkl. Schrauben und Schleifpapier
- Manufacturer data sheet & operating instructions
- https://shop.autarking.ch/solar-install-material/2576-klebe-set-fuer-solarmodul-spoilermontage.html
- Manufacturer data sheet & operating instructions
- Klebeset inkl. Primer - Spoilerset inkl. Schrauben und Schleifpapier
- Manufacturer data sheet & operating instructions
- https://shop.autarking.ch/en/solar-spoiler-roof-passages/2576-adhesive-set-for-solar-panel-spoiler-mounting-7640268111532.html
- Manufacturer data sheet & operating instructions
- Klebeset inkl. Primer - Spoilerset inkl. Schrauben und Schleifpapier
- Manufacturer data sheet & operating instructions
- https://shop.autarking.ch/solar-install-material/2576-klebe-set-fuer-solarmodul-spoilermontage.html
Specific References
- EAN13
- 7649989717856
- MPN
- AS-140-Set1
