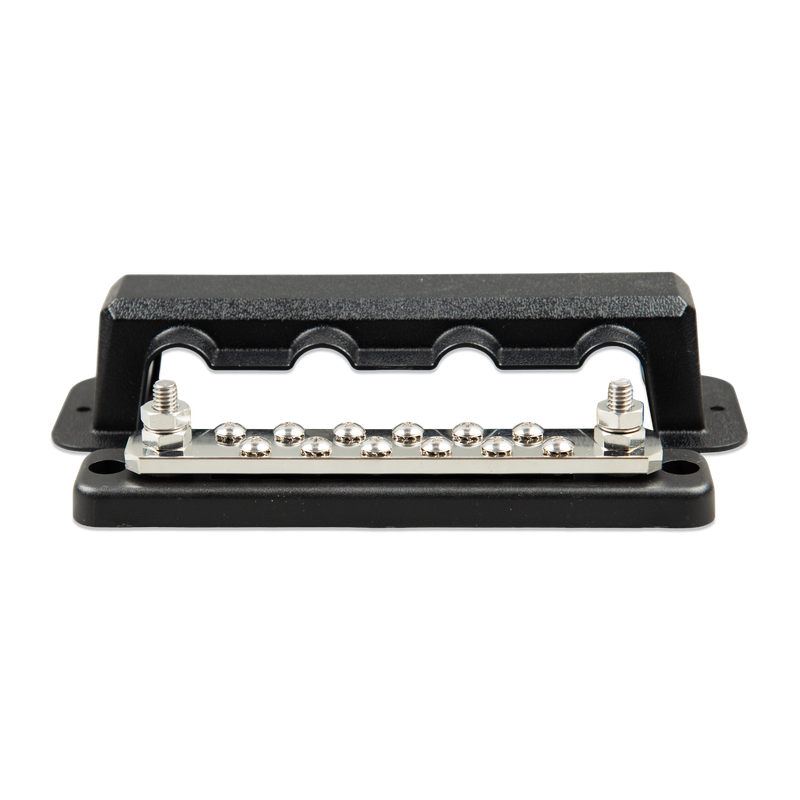

Busbar 250A 2 + 12 with cover
VBB125021220
Distributor rail 2 + 12
- System voltage up to 70V
- max. 250A
- Connections: 2 x 8mm (M14), 12 x 4.8mm
- with cover cap
Busbars 250A
Busbars are used for high-current distribution and also serve as connections for batteries or DC devices.
We offer a range of busbars with different rated currents and a different number of terminals.
Each busbar is equipped with a removable protective cover.
Available models:
- 150 A / 70 V - 4 high-current connections
- 150 A / 70 V - 6 high-current connections
- 250 A / 70 V - 4 high-current connections
- 250 A / 70 V - 6 high-current connections
- 600 A / 70 V - 4 high-current connections and 8 low-current connections
- 600 A / 70 V - 8 high-current connections and 8 low-current connections
VBB125021220
Data sheet
- Amperage
- 250A
- Connections
- 2 x 8mm (M14), 12 x 4.8mm
- Dimension
- 48 x 237 x 70 mm
- Weight
- 0.35kg
- Note
- with cover
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/upload/documents/Datasheet-Busbar-250-A-2P-with-6-or-12-screws-EN.pdf
- System voltage
- up to 70V
Specific References
- EAN13
- 8719076056393
