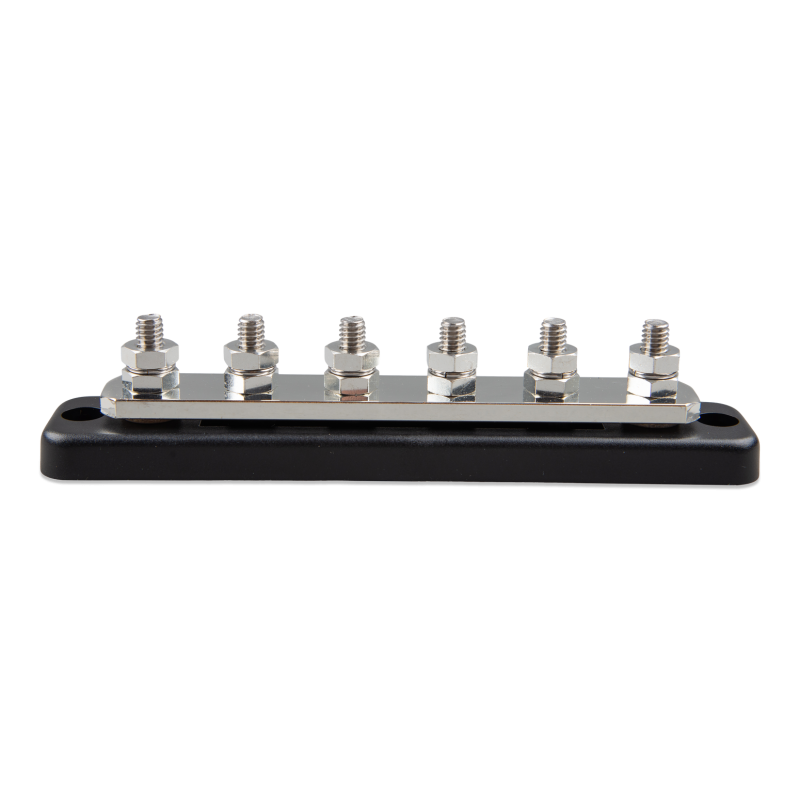

Busbar 250A 6P + cover
VBB125060020
Distribution rail 6gang
- System voltage up to 70V
- max. 250A
- 6 connections 8mm (M14)
- with cover cap
Busbars 250A
Busbars are used for high-current distribution and also serve as connections for batteries or DC devices.
We offer a range of busbars with different rated currents and a different number of terminals.
Each busbar is equipped with a removable protective cover.
Available models:
- 150 A / 70 V - 4 high-current connections
- 150 A / 70 V - 6 high-current connections
- 250 A / 70 V - 4 high-current connections
- 250 A / 70 V - 6 high-current connections
- 600 A / 70 V - 4 high-current connections and 8 low-current connections
- 600 A / 70 V - 8 high-current connections and 8 low-current connections
VBB125060020
Data sheet
- System voltage
- bis 70V
- Amperage
- 250A
- Connections
- 8mm
- Number of outputs
- 4
- Dimension
- 48 x 237 x 70mm
- Hint
- Mit Abdeckung
