GX Touch 70 (7 inch)
BPP900455070
Touch display for Cerbo GX
- High-resolution touch display
- 7 inch, resolution: 1024 x 600
- HDMI & USB
Accessories / Levy
Accessories

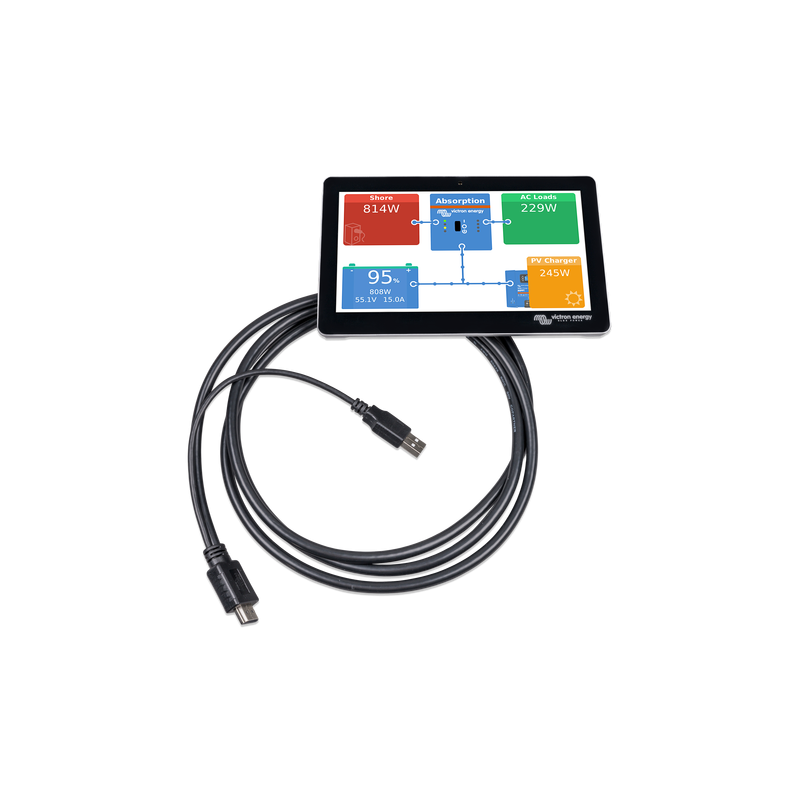

GX Touch 70
GX Touch 50 and GX Touch 70 are screens for our Cerbo GX. The five- and seven-inch touchscreen monitors provide an instant overview of your system and allow you to adjust settings in no time at all. They are simply connected to the Cerbo GX with a cable. Their super-slim, watertight design, top mounting and easy installation bring a lot of flexibility to building a clear and clean dashboard.
Watch the new video for everything you need to know about installing the new Cerbo GX & GX Touch.
-
Can the Victron GX Display's cables be extended?
Extending the cables of the Victron GX display is not recommended by Victron.
The HDMI cable can be extended up to 5m, after that a high quality HDMI cable must be extended.
However, the USB cable cannot be extended as the voltage drop in the cable will cause the display to flicker.
A USB power supply must be fitted to the original cable.
12/24V USB power supply sockets from the automotive sector work well.
Victron and Autarking do not provide any warranty or support in the event of display malfunction or flickering.
BPP900455070
Data sheet
- Interface
- HDMI & USB
- Cable length
- 2m
- Feature
- Verlängerung der USB Stromversorgung führt in den meisten Fällen zu flackerndem Display. Separate USB Stromversorgung wird benötigt.
- Dimension
- 113 x 176 x 13.5 mm
- Note
- Data and touch via HDMI, power supply via USB
- Note
- Extending the USB power supply leads to a flickering display in most cases. A separate USB power supply is required.
- Note
- HDMI extension goes up to 5m. After that, shielded, high-quality HDMI cable must be used. Without guarantee
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/panel-systems-remote-monitoring/gx-touch-50#datasheets
Specific References
- EAN13
- 8719076054344
