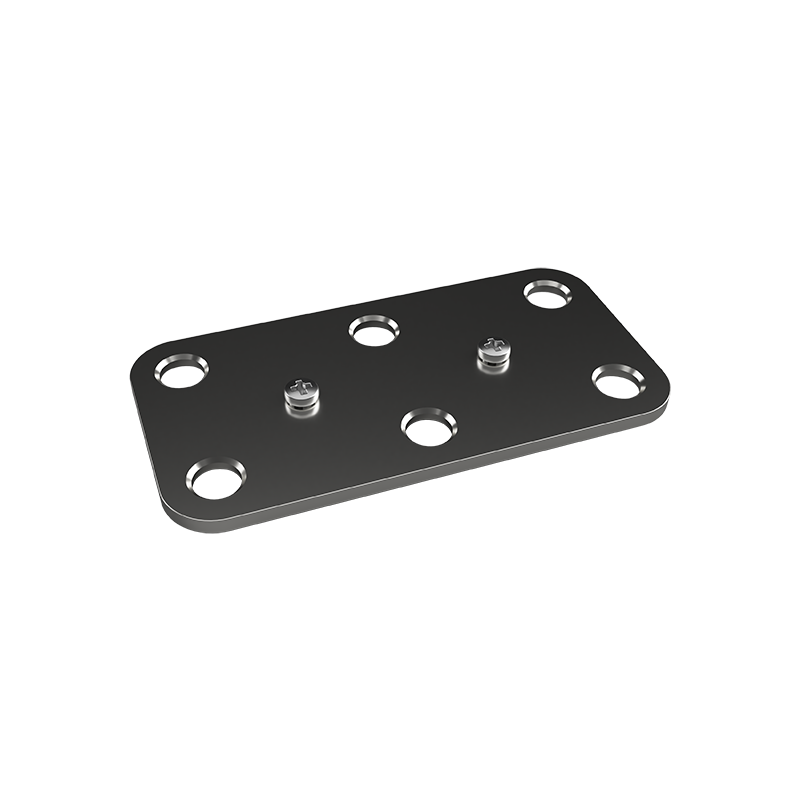

TBS - DCM double row link plate 2x3 600A
TBS-5079093
Double row link plate 2x3 for connecting DC modules
- 2x3 link plate with 38x50mm hole spacing
- can be used for M8 & M10
- Link options see images
DC Modular double row link plate 2x3 - 38x50mm - M8 / M10
Due to the common connection heights, several DC Modular products can be connected to each other to save space by connecting them with the optional Link Plates.
We have managed to offer only three Link Plate sizes to create all possible combinations. All Link Plates are compatible with M8 and M10 bolts.
Three new double rows of Link Plates have been added to the existing Link Plates. 2x2, 2x3, 2x4 so that several fuse holders can be connected together.
In addition, we have equipped some link plates with M4 screws to create practical connection points for smaller cables.
The adapter plate can be used on M8 and M10 bolts and offers four connection points for smaller cables.
Features
- Tin-plated, high-purity copper buses provide maximum conductivity, reduce heat and improve efficiency
- Compatible with M8 and M10 studs

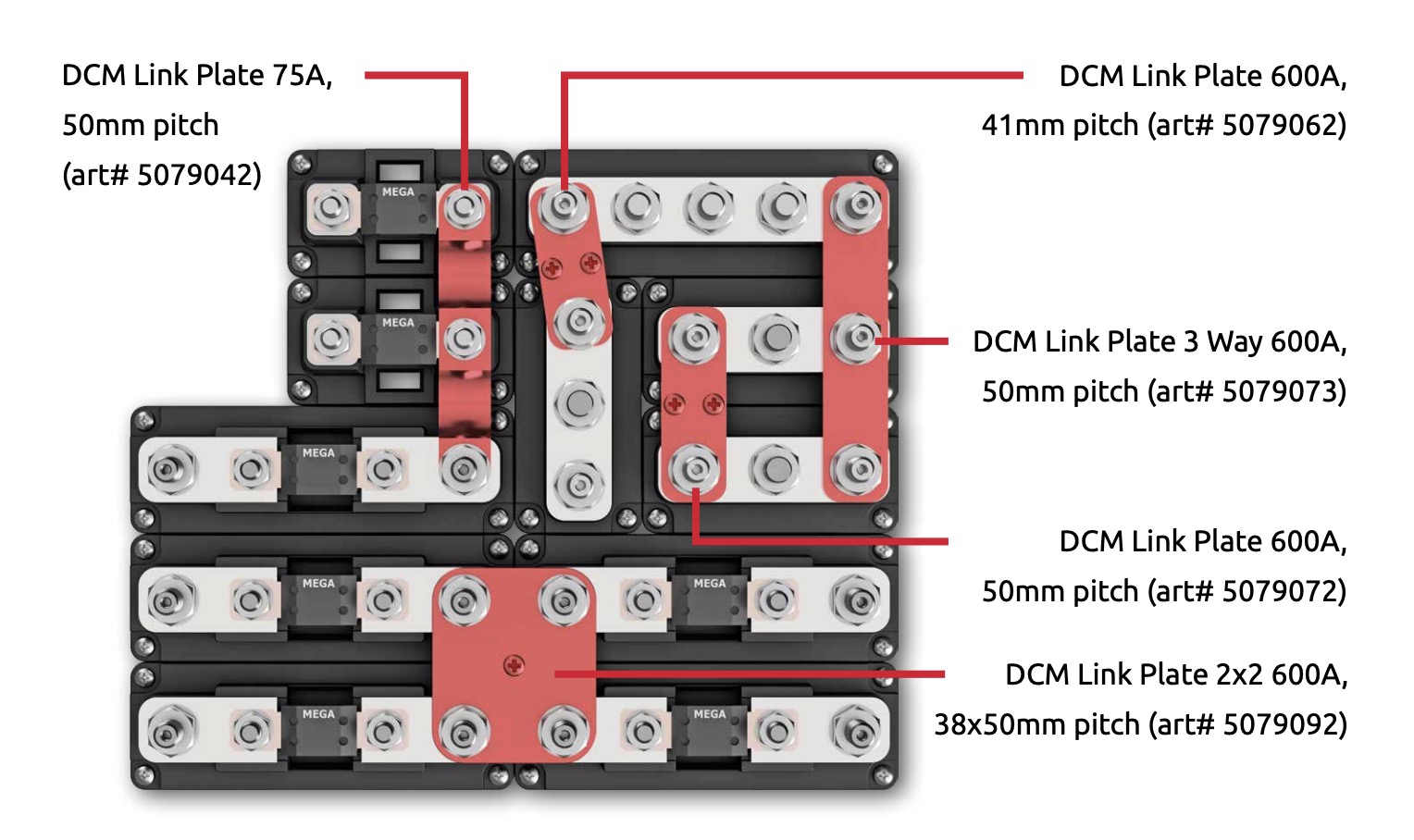

Overview of the connection
TBS-5079093
Data sheet
- Amperage
- 600A
- Connections
- M8 & M10
- Connections
- 2x3 + 2x M4
- Feature
- Hole spacing 50mm
- Manufacturer data sheet & operating instructions
- https://tbs-electronics.com/product/link-plates/
- System voltage
- bis 60VDC
Specific References
- EAN13
- 8721042601797
- MPN
- TBS-5079093
