TBS - DCM Link plate MEGA / ANL (10 pieces)
TBS-5079042
DC Modular Link plate MEGA (10 pieces)
- Adapter plates for DCM MEGA 300A
and ANL 300A fuse holders
- can be used for M8 & M10
- can be combined for high currents
- 50mm hole spacing
DC Modular Link Plates for MEGA + ANL 300A fuse holders (10 pieces)

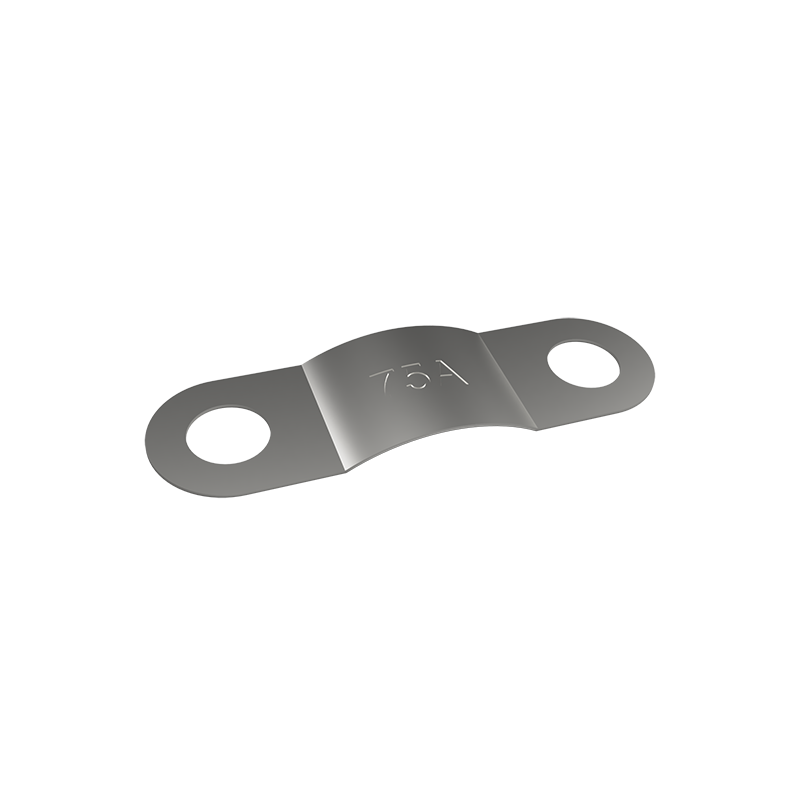

With the new flexible 75A Link Plate, our smaller 300A MEGA and ANL fuse holders can be linked together.
Something that was previously not possible with the existing 600A Link Plates.
Instead of stand-alone operation, these two smaller fuse holders can now also be integrated into a larger DCM cluster.
Up to 4 of these link plates can be stacked for a through current of 300A.
Features
- Tin-plated, high-purity copper buses provide maximum conductivity, reduce heat and improve efficiency
- M4 stainless steel bolts and washers provide convenient connection points for smaller cables
- Compatible with M8 and M10 bolts
TBS-5079042
Data sheet
- Amperage
- 300A
- Connections
- M8 / M10
- Note
- for integrating the MEGA + ANL 300A TBS fuse holders into the DCM system
- Manufacturer data sheet & operating instructions
- https://tbs-electronics.com/product/link-plates/
- System voltage
- bis 60VDC
Specific References
- EAN13
- 8721042601704
- MPN
- TBS-5079042
