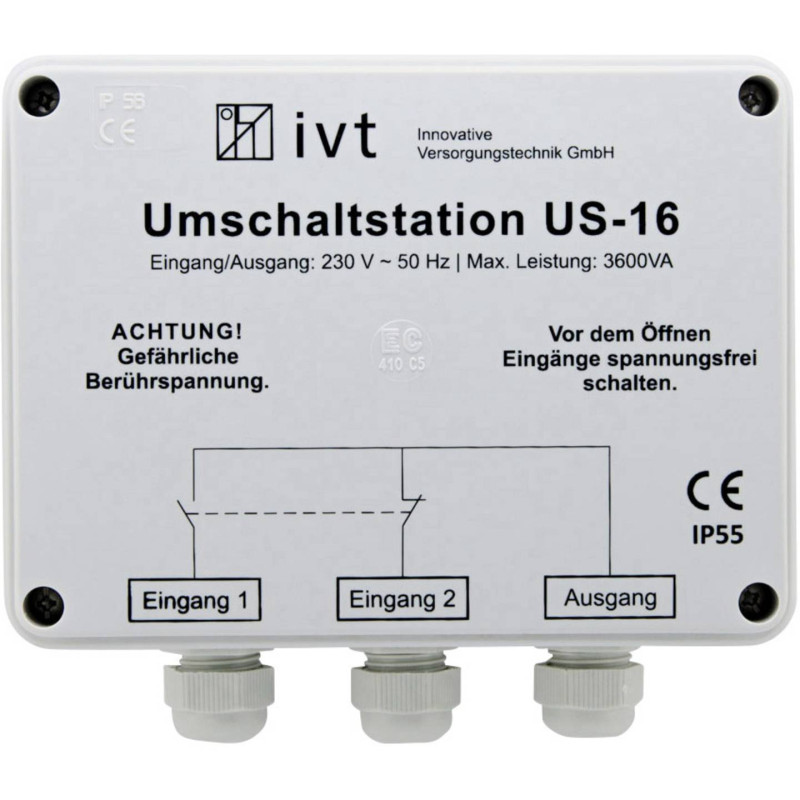

Mains switching station up to 3600VA

Reliable power supply thanks to precise switching.

The switching station enables you to supply 230 V/AC consumers via two different voltage sources without any disruption, for example via an inverter and the public 230 V power grid or a generator.

The prioritisation circuit allows you to determine which voltage source should be used in preference; if this voltage source fails, the switching station automatically switches to the backup voltage source. This means that your devices continue to run despite a power failure or depleted battery.

The high-quality relays ensure a precise switching threshold. This means that your inverter is particularly well protected against feedback from external voltage.

Recommended use: Suitable for off-grid solar systems, cars, service and commercial vehicles, motorhomes, caravans, motor and sailing boats u.v.m.

This unit does not have a special generator control / time delay

- Suitable for sine wave inverters up to max. 3600 VA
- Microprocessor-controlled
- Connection: screw terminals
- Switchover time 0.5 s
- Input current max. 16 A
- Short-circuit proof
- Overload protection
- Protection against reverse feed
- Priority switching
- Freely selectable mains priority switching
- Switches reliably between two 230 V/AC power sources
- Precise switching thanks to high-quality relays
- Dust and water jet protected
- Protection class IP50, for dry rooms

Additional fuse
