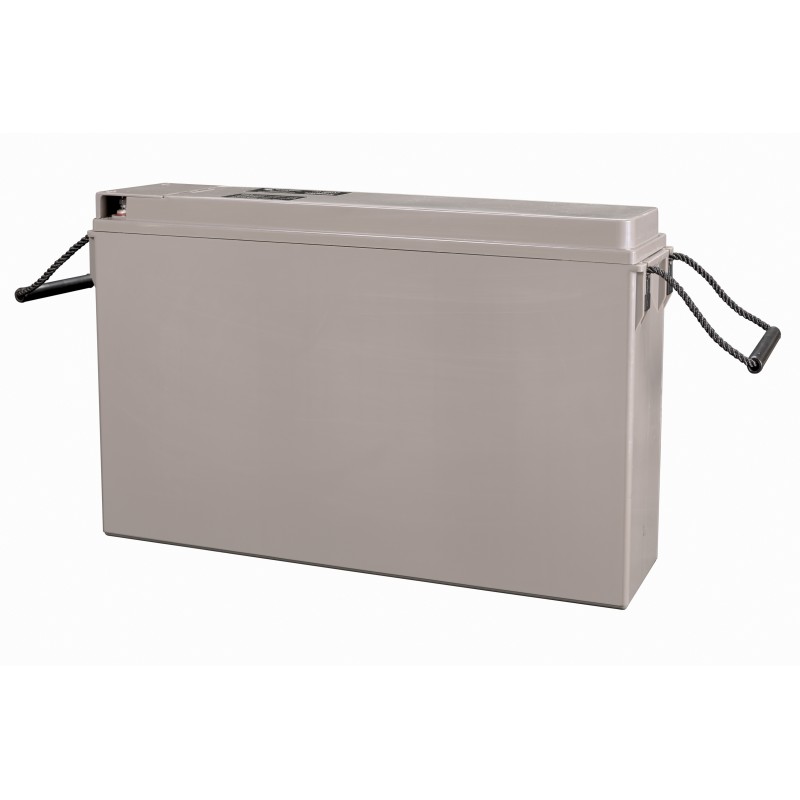

12V/115Ah AGM Telecom battery M8
BAT412105164
AGM battery 115Ah
- Battery voltage 12V, capacity 115Ah (C20), CCA 650
- 35kg, connection M8,
- 600 cycles 50%, 400 cycles 80%
Accessories / Levy
VRG - prepaid recycling fee
|
VRG - Lead-acid battery |
Battery monitor
Battery protection
Installation
AGM battery 12V 115Ah
VRLA AGM: planned service life 7-10 years (float)
VRLA GEL: planned service life 12 years (float)
VRLA GEL2 Volt cells: planned service life 20 years (float)
The AGM range has a very low internal resistance. These batteries are therefore particularly suitable for applications with high current discharge, such as inverters, steel rudders and winches.
The gel range offers the best deep cycle durability and overall longer life. The use of high purity materials and lead calcium grids ensures that both AGM and GEL products have a particularly low self-discharge. This prevents them from discharging during extended periods when they are not being charged. Both ranges are supplied with M8 copper cable lug connections. This ensures the best possible connection contact and no battery connectors are required. The batteries fulfil both CE and UL requirements in ABS fireproof containers and are guaranteed by Victron for 2 years worldwide.
BAT412105164
Data sheet
- Battery voltage
- 12V
- Capacity / Ah
- 115Ah
- Connections
- M8
- Battery length (mm)
- 395mm
- Battery width (mm)
- 110mm
- Battery height (mm)
- 293mm
- Weight
- 35kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/batteries/gel-and-agm-batteries#datasheets
Specific References
- EAN13
- 8719076036999
