Self-sufficient allotment set - 190Wp - 130Ah - 400W
AUTARKING-Set3
The all-in-one set for allotment gardens / small off-grid systems
- GEL battery 130Ah, 500VA sine wave inverter
- 190W solar panel with 75/15 MPPT solar controller
- MEGA fuse & holder and cable included
- Simple solution away from the public power grid
Accessories / Levy
VRG - prepaid recycling fee
|
VRG - Lead-acid battery |
Controll panels
Power supply in the allotment garden
The allotment set consists of the following components:
- Energy storage Victron 130Ah GEL battery
The battery stores the electricity generated by the solar panel and the MPPT solar controller.
- Pure sine wave inverter Phoenix 12V/500VA (400W)
The inverter generates 230V AC from the 12V DC voltage of the battery,
to supply 230V consumers with max. 400W continuous power.
-190W monocrystalline solar panel
The solar system supplies energy to charge the battery and / or for current consumption. In summer with full sun (45°, south-facing), it supplies the battery with up to 15A.
- MPPT Smart solar charge controller
The solar charge controller can be programmed via Bluetooth. You can also view various parameters such as the progress of the solar charge, the battery voltage, etc. over the past 30 days. 12V consumers up to 15A can be controlled via the load output.
- Various DC cables, solar cable, MEGA fuse holder, MEGA fuse
Energy yield:
Energy yield 190Wp x 4 (expected yield per day) = 760Wh - 15% (loss of charge controller & battery) = 646Wh (12.5V - 51Ah)
This system is sufficient for some light and radio, mobile devices can simply be charged via 230V, a small 12V water pump can also be supplied. To operate a refrigerator / cool box, a device with a 12V compressor would have to be used. However, this can only be operated on sunny days. Please note that each energy requirement / consumption is very individual.

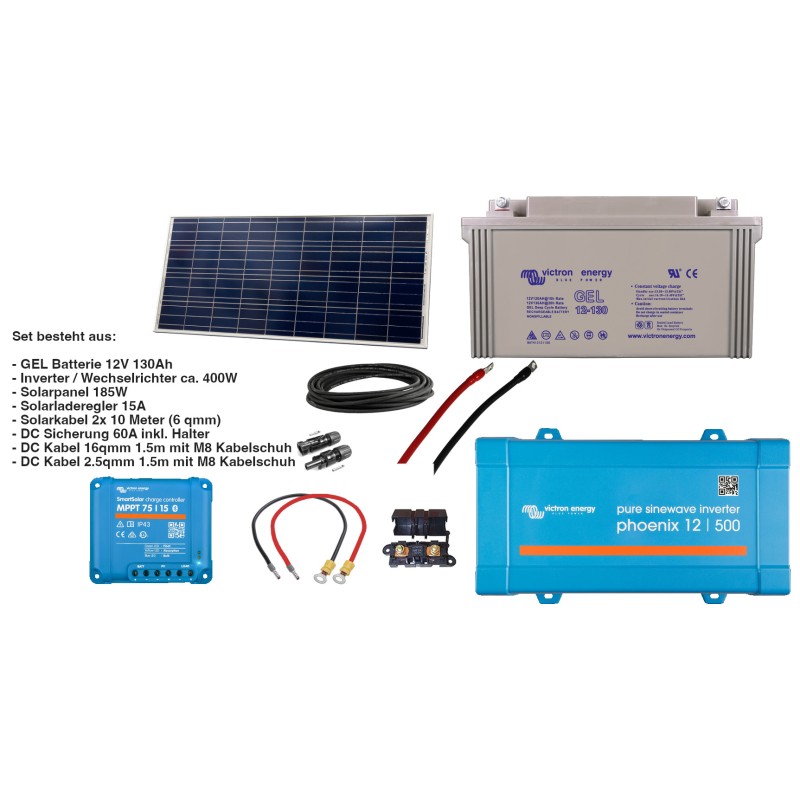

Scope of delivery:
- 1x GEL battery 12V 130Ah
- 1x inverter approx. 400W
- 1x adapter Schuko / CH
- 1x solar panel 190W
- 1x solar charge controller 15A
- Solar cable 2x 10 meters 6mm2
- 1x DC fuse 60A incl. holder
- DC cable 2x 1.5m 6mm2 for solar charge controller
- DC cable 2x 1.5m 10mm2 for sine wave inverter
The cables are "pre-assembled ready for connection" by us.
If necessary, it also makes sense to analyze your energy requirements and your wishes in a discussion.
AUTARKING-Set3
Data sheet
- Battery voltage
- 12V
- Capacity / Ah
- 130Ah
- Charging current
- 15A
- PV input voltage
- 75V
- Panel power
- 190Wp
- Solar panel length (mm)
- 1485mm
- Solar panel width (mm)
- 668mm
- Solar panel height (mm)
- 30mm
- Inverter power (25°) W
- 400W
- Inverter power peak
- 900W
- Interface
- VE.Direct & Bluetooth
- Protection
- 60A
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/inverters/phoenix-inverter-vedirect-250va-800va#datasheet
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/solar-pv-panels/bluesolar-panels#datasheets
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/batteries/gel-and-agm-batteries#datasheets
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/solar-charge-controllers/smartsolar-mppt-75-10-75-15-100-15-100-20#datasheets
