Centaur Charger 12/30 (3)
CCH012030000
12V charger 30A with 3 outputs
- 3-stage charging algorithm, charging current 30Amp
- Can be used all over the world
- AC and DC input possible
Accessories / Levy
Programmierung
|
|

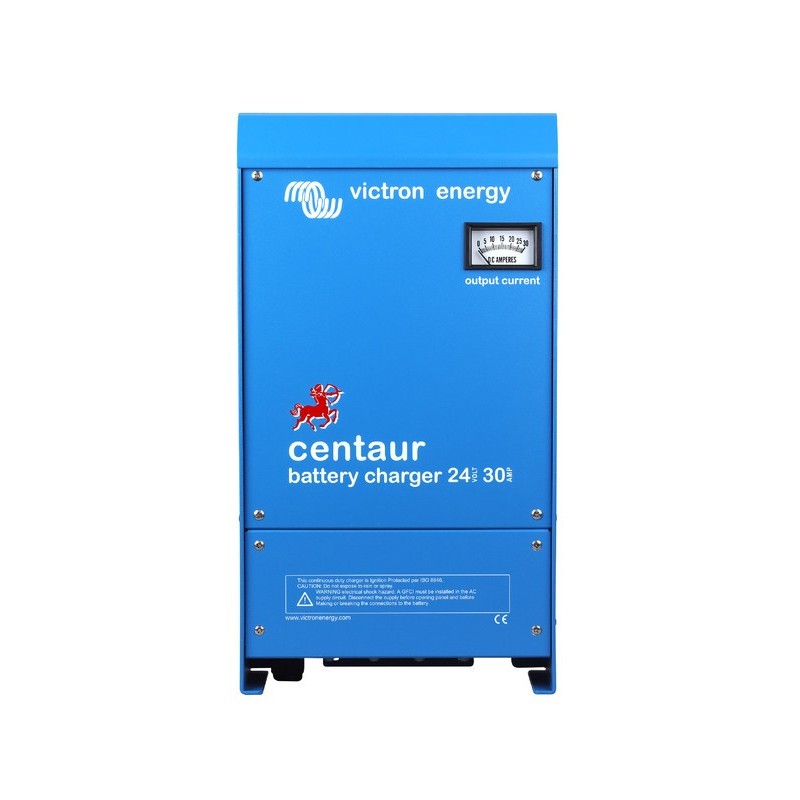

Centaur battery charger
The Centaur range of battery chargers has an auto-adaptive input that covers the range between 90-265 VAC 50/60 Hz. This means that these chargers can be used anywhere in the world.
Unlike many other devices that have universal input power, the Centaur range maintains full output power within the specified range. Among other features, the model has a fully automatic three-stage charging characteristic to ensure batteries are fully charged every time, as well as three separate charging outputs for multi-battery equipment to suit most typical installations.
The range spans 12V and 24V models from 16A up to 100A.
CCH012030000
Data sheet
- Input voltage
- 180 - 265V AC
- Output voltage
- 12V
- Battery voltage
- 12V
- Charging current
- 30A
- Loading algorithm
- multi-stage, adaptive
- Output voltage Characteristic
- Charging characteristic
- Number of outputs
- 3
- Protection class IP
- IP 20
- Dimension
- 355 x 215 x 110mm
- Weight
- 3.8kg
- Manufacturer data sheet & operating instructions
- https://www.victronenergy.de/chargers/centaur-charger-12v-24v#datasheet
Specific References
- EAN13
- 8719076021483
- MPN
- CCH012030000
