Multi RS Solar 48/6000/100 - 450/100 - 2 trackers
PMR482602020
Inverter, charger & MPPT solar charger 48V 6000VA
- 6000W MPPT solar (2 trackers), 5000W inverter, peak 9000W
- battery sp. 48V, PV voltage: 65 - 450 V, max. charge 100A, 12.3kg
- VE.Can and VE.Direct interface for system integration, Bluetooth
Accessories / Levy
Installation
Programmierung
|
|
|
|
Interface MK3-USB (VE.Bus to USB) |
|
|
Interface MK3-USB (VE.Bus to USB-C) |
Hybrid inverter/charger

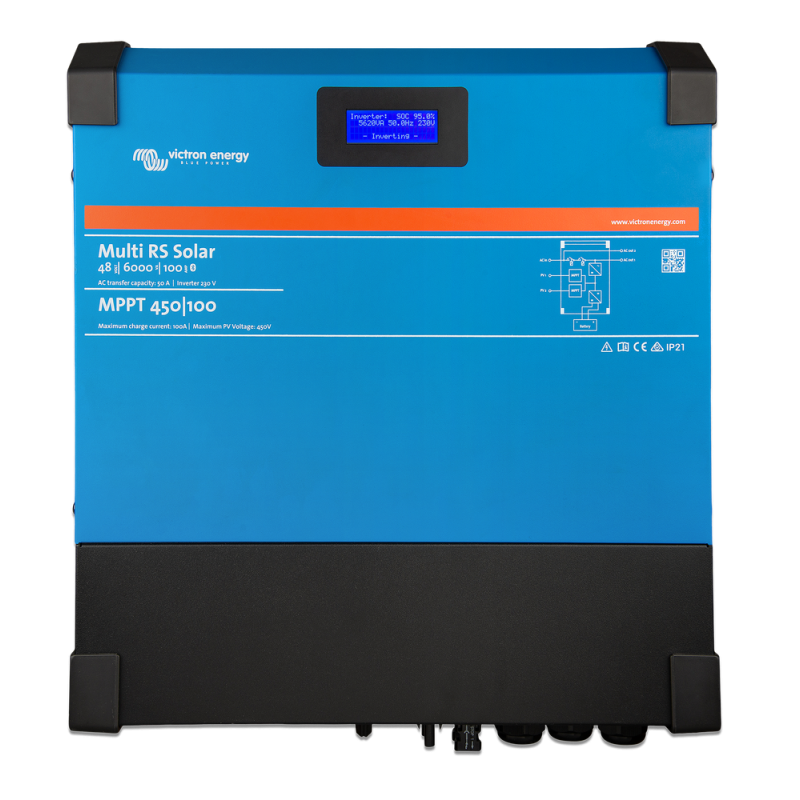

The Multi RS Solar 48/6000 is an inverter/charger for 48 V & 6 kVA with 450 VDC 6 kWp PV input via 2 trackers of 3000Wp each.
Thanks to high frequency technology and a new design, this powerful inverter weighs only 12 kg. It also has excellent efficiency, low standby power and very quiet operation.
The display reads the battery, inverter and solar parameters. The same parameters can be accessed with a smartphone or other Bluetooth-enabled device via the VictronConnect app.
Victron Remote Management
The Victron Remote Management (VRM) online portal allows you to access your installation from anywhere and at any time. In VRM you can check the status of your connected products, view detailed history graphs of your energy, generate detailed analysis reports and even configure automatic alarms if something goes wrong.
VictronConnect
With VictronConnect you can check live status information and configure all Victron products that either have a built-in Bluetooth function or are connected to a VE.Direct Bluetooth Smart Dongle.
PMR482602020
Data sheet
- Output voltage
- 230 VAC
- Frequency
- 50 Hz
- Battery voltage
- 48V
- Charging current
- 100A
- Loading algorithm
- multi-stage, adaptive
- Nominal PV power 48V
- 4000W
- PV input voltage
- 300V max. 450V
- Connections
- MC4
- Connections
- M8
- Number of outputs
- 2
- Inverter power (25°) W
- 4800 - 5300W
- Inverter power peak
- 9000W
- Transfer switch
- 31A
- Protection class IP
- IP 21
- Interface
- VE.CAN & VE.Direct & Bluetooth
- Parallel / 3 phase
- 3Phase Yes / Parallel No
- Dimension
- 425 x 440 x 125mm
- Weight
- 11kg
- Number of strings
- 2 String 1 Tracker
- Recommended battery capacity
- 200 - 500Ah
- Recommended protection
- 50A
- Regenerative power supply capable (ESS) Switzerland ?
- Not yet
- Note
- Generator operation is not yet supported
- Manufacturer data sheet & operating instructions
- Generatorbetrieb wird noch nicht unterstützt
Specific References
- EAN13
- 8719076056690
- MPN
- PMR482602020
